Telehandler · JLG

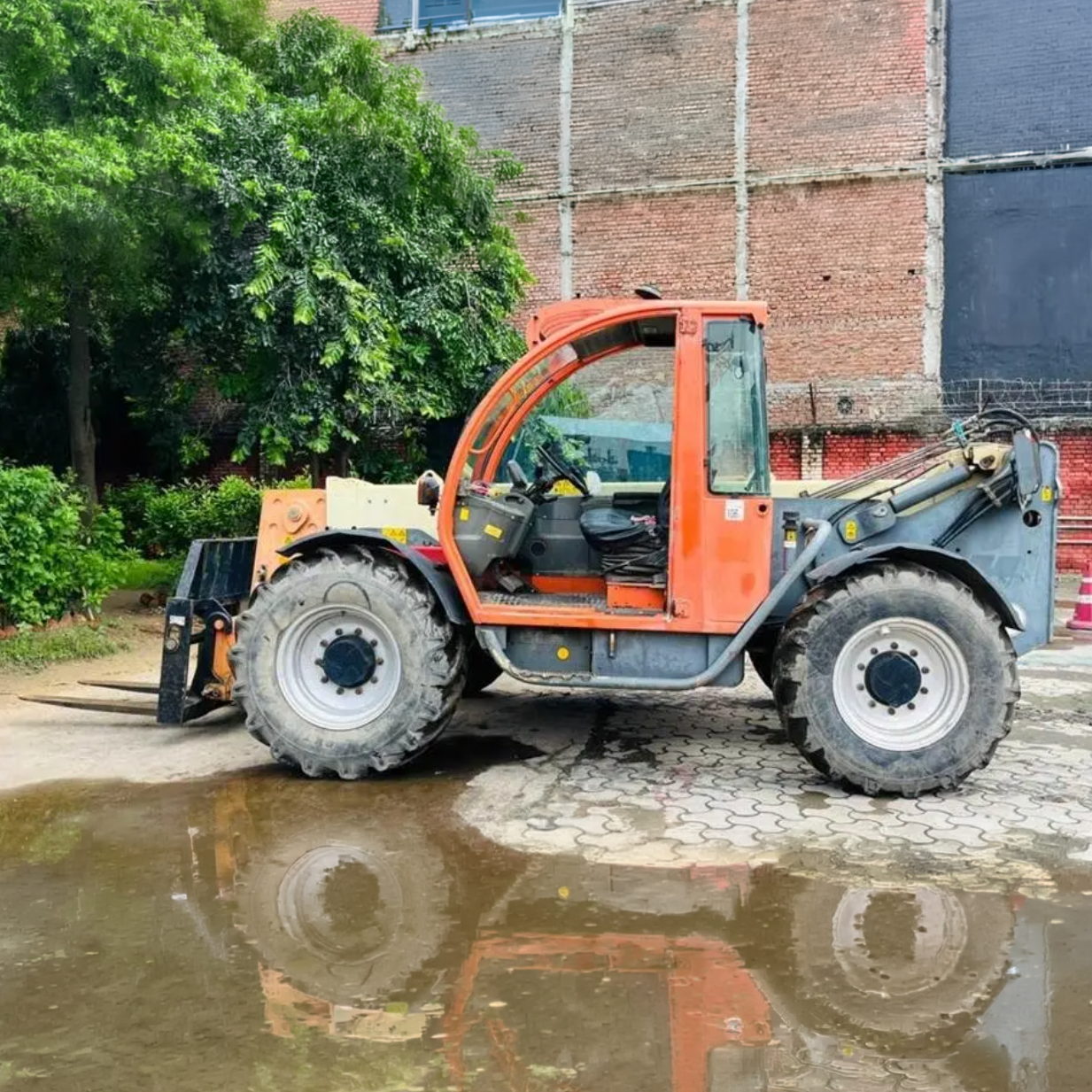

JLG 3508 Specs
Quick-reference specifications for the JLG 3508 telehandler, compiled from published specifications.
- Capacity at Full Forward Reach
- 2,205 lb1 t
- Working Height
- 29.5 ft9 m
- Operating Weight
- 16,314 lb7.4 t
Performance 6 specs
| Lifting Height | 25.9 ft (7.9 m) |
|---|---|
| Maximum Horizontal Reach | 14.4 ft (4.4 m) |
| Nominal Load Capacity at COG | 7,716 lb (3.5 t) |
| Capacity at Full Forward Reach | 2,205 lb (1 t) |
| Capacity at Full Lift Height | 7,716 lb (3.5 t) |
| Working Height | 29.5 ft (9 m) |
Dimensions 4 specs
| Transport Length | 17.4 ft (5.3 m) |
|---|---|
| Transport Width | 7.81 ft (2.38 m) |
| Transport Height | 8.04 ft (2.45 m) |
| Standard Tire Size | 16/70-20 |
Weight 1 spec
| Operating Weight | 16,314 lb (7.4 t) |
|---|
Power / Engine 1 spec
| Engine Power | 80.4 hp (60 kW) |
|---|
