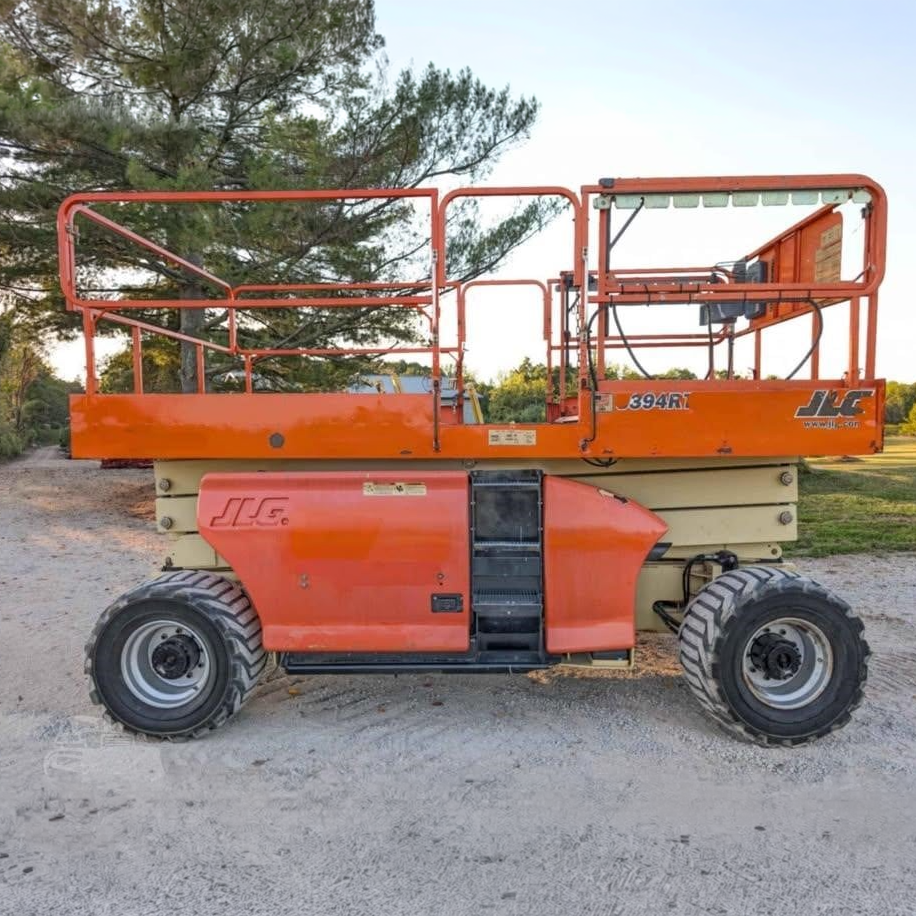

JLG 3394RT Specs
Quick-reference specifications for the JLG 3394RT scissor lift, taken from the manufacturer’s spec sheet.
- Performance Data – Platform Capacity
- 2,250 lb1,020 kg
- Dimensional Data – A. Platform Height—Elevated
- 33 ft10.06 m
Performance 8 specs
| Performance Data – Platform Capacity | 2,250 lb (1,020 kg) |
|---|---|
| Performance Data – Capacity on Extension | 500 lb (227 kg) |
| Performance Data – Capacity w/Dual Extensions | 2,000 lb (907 kg) |
| Performance Data – Lift/Lower Time | 30/30 sec |
| Drive Speed—4WD | 4 mph (6.4 kph) |
| Turning Radius (Inside) | 8 ft 10.5 in (2.71 m) |
| Turning Radius (Outside) | 19 ft 5.5 in (5.93 m) |
| Oscillating Axle | 86 x 150 in Platform |
Dimensions 9 specs
| Dimensional Data – A. Platform Height—Elevated | 33 ft (10.06 m) |
|---|---|
| Dimensional Data – Platform Height—Lowered | 5 ft 1.75 in (1.57 m) |
| Dimensional Data – B. Platform Railing Height | 3 ft 7.5 in (1.1 m) |
| Overall Height (Rails Lowered) | 6 ft 5.75 in (1.97 m) |
| Platform Extension | 4 ft (1.22 m) |
| Overall Length | 12 ft 8 in (3.86 m) |
| Overall Width | 94 in (2.39 m) |
| Wheelbase | 9 ft 8 in (2.95 m) |
| Ground Clearance | 12 in (30 cm) |
Power / Engine 3 specs
| Power System/Chassis – Axle Oscillation | 8 in (20 cm) |
|---|---|
| Dual Fuel Engine (Water-Cooled) – Ford LRG-425 EFI | 82 hp (61 kW) |
| Diesel Engine (Air-Cooled) – Deutz F3M1011F | 46 hp (34 kW) |
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 30 gal (113.6 L) |
|---|---|
| Hydraulic Reservoir | 40 gal (151.4 L) |
