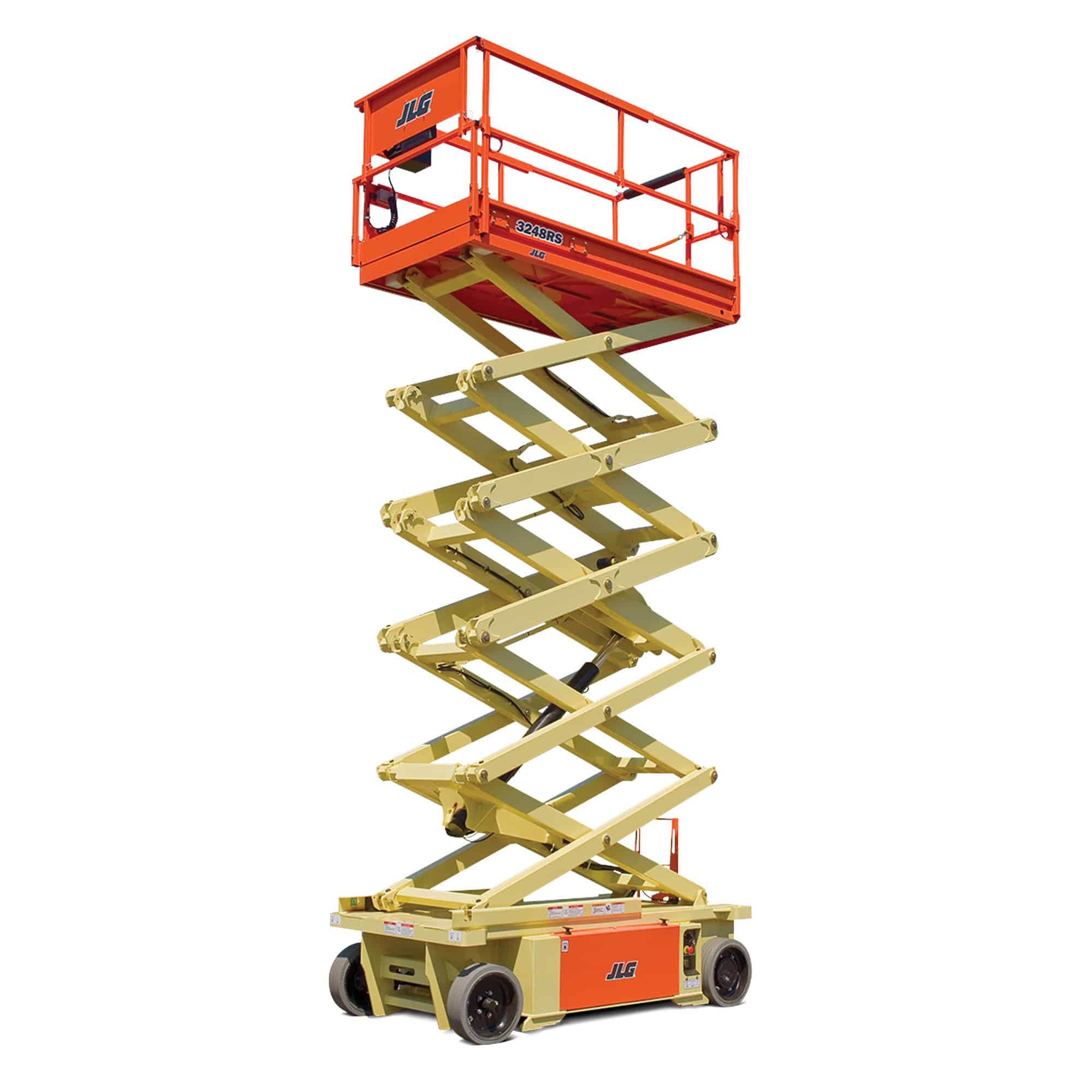

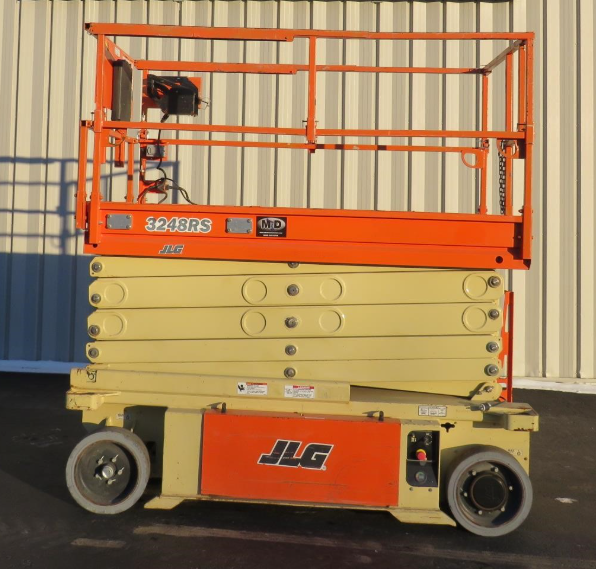

JLG 3248RS Spec Sheet
Quick-reference specifications for the JLG 3248RS. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform Capacity: 500 lb (227 kg)
Capacity on Deck Extension: 250 lb (113 kg)
Overall Height 6 ft: 7.4 in. (2.02 m)
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| to pull out. | 25% Gradeability |
|---|---|
| Platform Capacity | 500 lb (227 kg) |
| Capacity on Deck Extension | 250 lb (113 kg) |
| Gradeability | 25% |
| Turning Radius (Inside) | 2 ft (.6 m) |
| Turning Radius (Outside) 7 ft | 3 in. (2.2 m) |
Dimensions
| Platform Railing Height 3 ft | 4.2 in. (1.016 m) |
|---|---|
| Overall Height 6 ft | 7.4 in. (2.02 m) |
| Platform Dimensions 6 ft x 2 ft | 3 in. (1.82 m x .68 m) |
| Overall Machine Length 6 ft | 9.4 in. (2.07 m) |
| Overall Machine Width | 32 in. (.812 m) |
| Wheelbase | 55 in. (1.39 m) |
| Ground Clearance (Midframe) | 3.1 in. (7.87 cm) |
| Maximum Drive Height | 19 ft (5.8 m) |
Weights & Electrical
| Weight | 3,450 lb (1,565 kg) |
|---|---|
| Batteries 4 x 6V, | 220 AH |
| Charger | 25 amp |
| Drive | 24V DC |
| Standard Features | 110V-AC Receptacle in Platform |
| Optional | 25 Amp Automatic SCR Charger |
Powertrain & Systems
| Drive Speed, Lowered | 2.5 mph (4 km/h) |
|---|---|
| Tire Size (Solid, Non-Marking) 12.5 x 4 in. (3.18 x | 10 cm) |
| JLG Industries, Inc. | 1 JLG Drive |
Hydraulics & Capacities
| Ground Bearing Pressure | 143 psi (10.05 kg/cm2 ) |
|---|---|
| Pump | 3.2 cc/rev @ 2,300 psi (3.2 cc/rev @178 kg/cm2) |
| Hydraulic Reservoir | 1.32 gal (5 L) |
