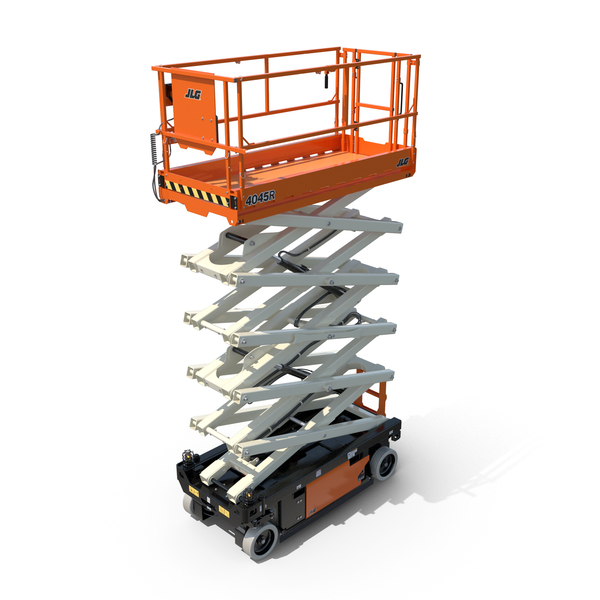

JLG 4045R Spec Sheet
Quick-reference specifications for the JLG 4045R. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform Capacity (Indoor): 770 lb
Platform Height (Indoor) 39 ft: 3 in.
G Overall Width: 45 in.
D. Stowed Height, Rails Folded: 75 in.
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Platform Height (Indoor) 39 ft | 3 in. |
|---|---|
| Platform Height (Outdoor) | 29 ft |
| Platform Capacity (Indoor) | 770 lb |
| Platform Capacity (Outdoor) | 550 lb |
| Capacity on Platform Extension | 250 lb |
| Gradeability | 25% |
| Turning Radius (Outside) | 100 in. |
Dimensions
| Maximum Drive Height (Outdoor) | 29 ft |
|---|---|
| B. Platform Railing Height | 44 in. |
| C. Overall Height | 100 in. |
| D. Stowed Height, Rails Folded | 75 in. |
| E. Platform Size 41 in. x | 96 in. |
| G Overall Width | 45 in. |
| Overall Length, Ladder Removed | 101 in. |
| I. Wheelbase | 80 in. |
| J. Ground Clearance | 5 in. |
Weights & Electrical
| Batteries 24V DC (4 x 12V, | 150 amp-hr batteries) |
|---|---|
| Charger | 27 amp High Frequency Charger |
Powertrain & Systems
| JLG Industries, Inc. | 1 JLG Drive |
|---|
Hydraulics & Capacities
| Ground Bearing Pressure | 135 psi |
|---|
