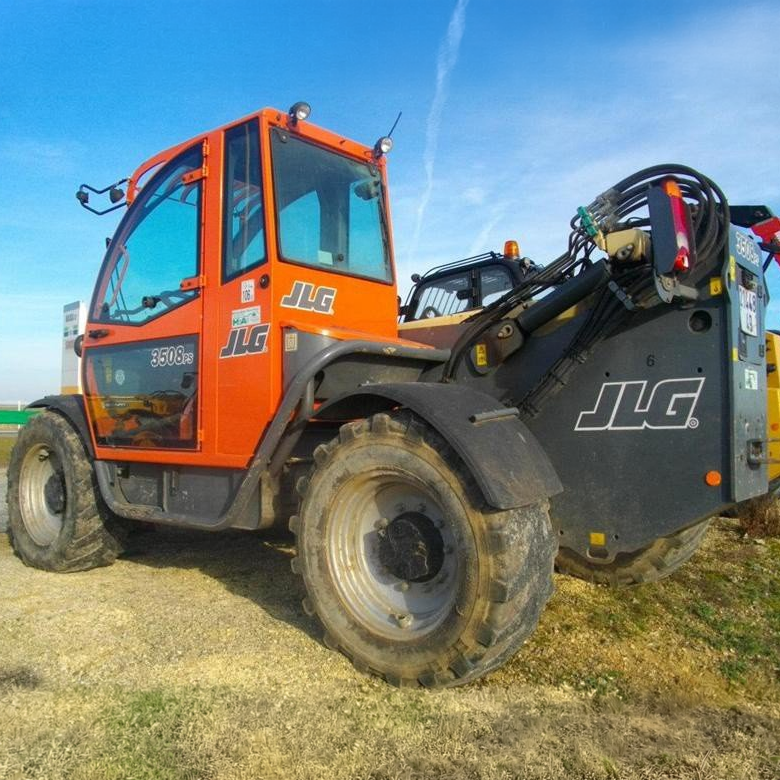

JLG 3508PS Specs
Quick-reference specifications for the JLG 3508PS telehandler, compiled from published specifications.
- Maximum Lift Capacity
- 7,716 lb3.5 t
- Capacity at Full Forward Reach
- 2,204 lb1 t
- Maximum Lift Height
- 25.9 ft7.9 m
- Maximum Forward Reach
- 14.4 ft4.4 m
Performance 5 specs
| Maximum Lift Capacity | 7,716 lb (3.5 t) |
|---|---|
| Maximum Lift Height | 25.9 ft (7.9 m) |
| Maximum Forward Reach | 14.4 ft (4.4 m) |
| Capacity at Full Forward Reach | 2,204 lb (1 t) |
| Capacity at Full Lift Height | 7,716 lb (3.5 t) |
Dimensions 3 specs
| Transport Length | 17.4 ft (5.3 m) |
|---|---|
| Transport Width | 7.8 ft (2.38 m) |
| Transport Height | 7.9 ft (2.41 m) |
Weight 1 spec
| Operating Weight | 16,314 lb (7.4 t) |
|---|
Power / Engine 2 specs
| Engine Power | 100 hp (74.5 kW) |
|---|---|
| Transmission | 4-speed Powershift |
Hydraulics / Fluids 1 spec
| Hydraulic Pump Output | 132 l/min |
|---|
