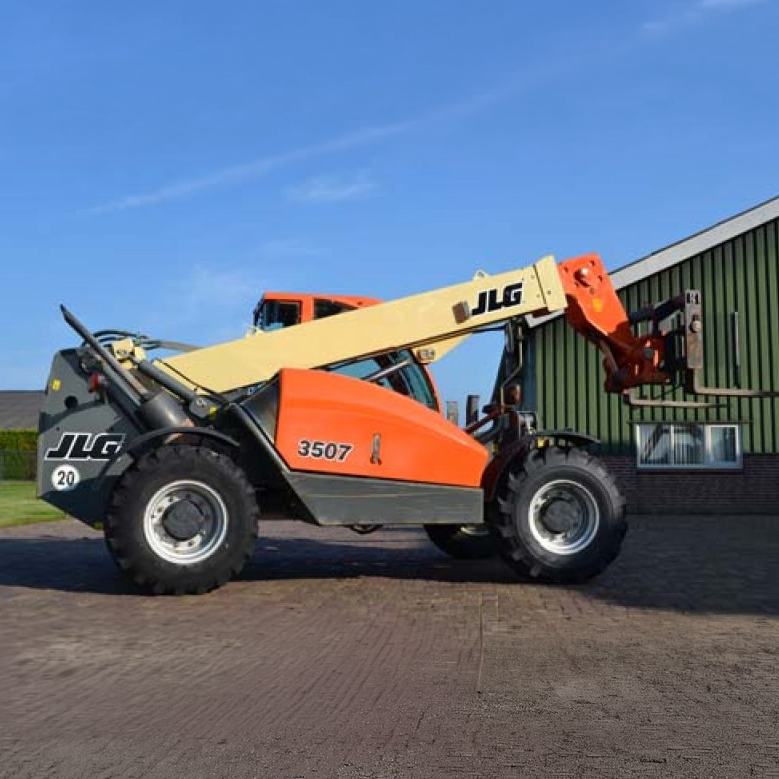

JLG 3507 Specs
Quick-reference specifications for the JLG 3507 telehandler, compiled from published specifications.
- Max Lift Capacity
- 7,716 lb3,500 kg
- Operating Weight
- 16,314 lb7,400 kg
Performance 8 specs
| Max Lift Height | 23.96 ft (7.30 m) |
|---|---|
| Max Forward Reach | 14.44 ft (4.40 m) |
| Max Load At Max Reach | 2,205 lb (1,000 kg) |
| Max Load At Max Height | 4,409 lb (2,000 kg) |
| Max Lift Capacity | 7,716 lb (3,500 kg) |
| Max Speed – Forward | 15.6 mph (25.1 km/h) |
| Max Speed – Reverse | 15.6 mph (25.1 km/h) |
| Turning Radius Outside Tires | 12.47 ft (3.80 m) |
Dimensions 5 specs
| Length To Fork Face | 14.64 ft (4.46 m) |
|---|---|
| Ground Clearance | 16.54 ft (5.04 m) |
| Width Over Tires | 7.81 ft (2.38 m) |
| Overall Height | 7.91 ft (2.41 m) |
| Wheelbase | 9.36 ft (2.85 m) |
Weight 1 spec
| Operating Weight | 16,314 lb (7,400 kg) |
|---|
Power / Engine 4 specs
| Engine Type | Diesel 1104.44 |
|---|---|
| Gross Power | 80.5 hp (60 kW) |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
Hydraulics / Fluids 4 specs
| Hydraulic System Fluid Capacity | 42.3 gal (160 L) |
|---|---|
| Fuel Capacity | 37 gal (140 L) |
| Pump Flow Capacity | 34.9 gal/min (132 L/min) |
| Tire Size | 16/70-20 |
