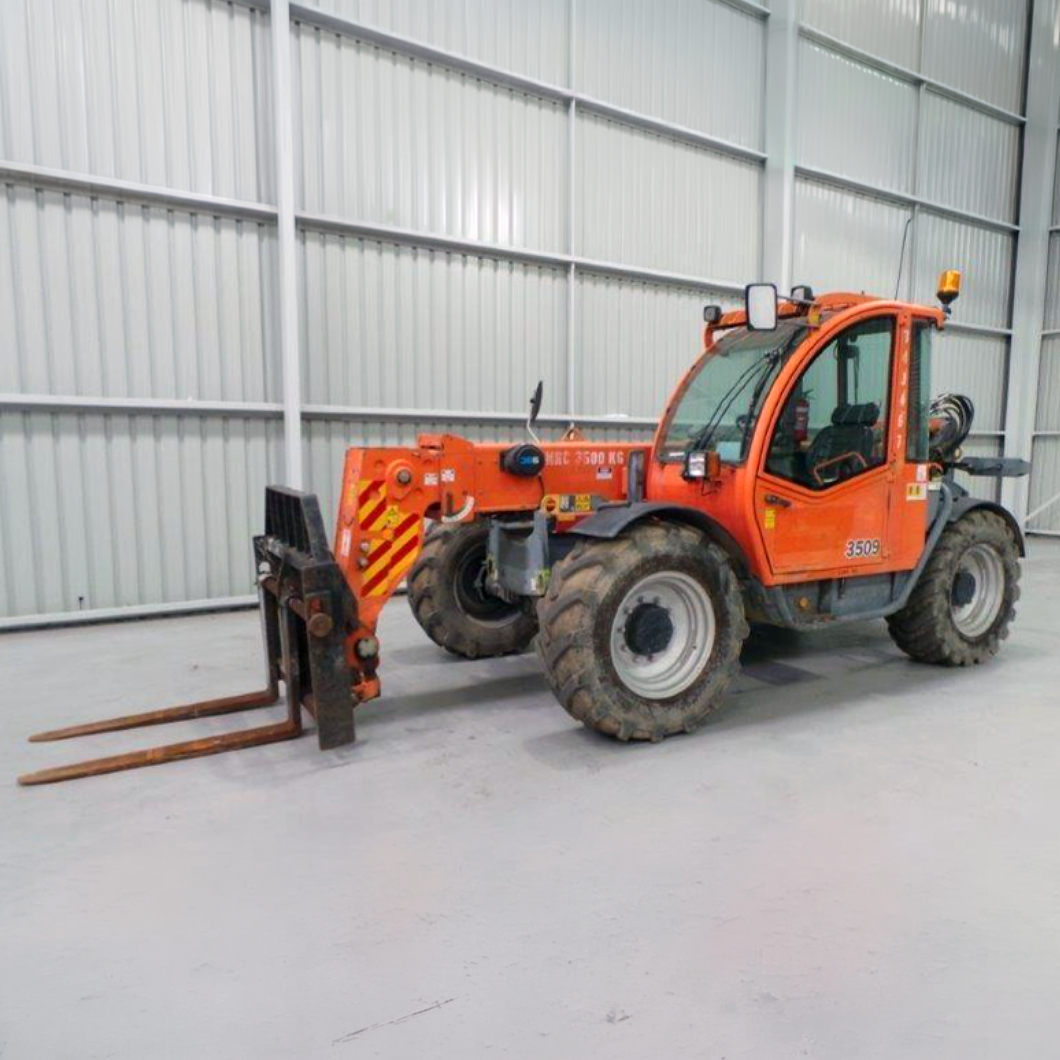

JLG 3509 Spec Sheet
Quick-reference specifications for the JLG 3509. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Maximum Forward Reach: 4.40 m
B. Overall Width: 2.38 m
Maximum Lift Capacity: 3,500 kg
A. Overall Height: 2.41 m
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Maximum Lift Capacity | 3,500 kg |
|---|---|
| Capacity at full height | 2,000 kg |
| Maximum Forward Reach | 4.40 m |
| Capacity at Maximum Forward Reach | 1,000 kg |
| Towing Capacity | 5,000 kg |
| I. Turning radius over tyres | 3.80 m |
| J. Turning radius at fork | 4.75 m |
| Travel Speed – first gear | 5 km/h |
| Travel Speed – second gear | 10 km/h |
| Travel Speed – third gear | 25 km/h |
| Gradeability | 45% |
| Maximum Lift Capacity | 2,600 kg |
| Capacity at full height | 2,200 kg |
| Maximum Forward Reach | 3.16 m |
| I. Turning Radius over tyres | 3.90 m |
| J. Turning radius at fork | 5.10 m |
| Travel Speed – first gear | 10 km/h |
| Travel Speed – second gear | 32 km/h |
Dimensions
| Lifting Height | 7.30 m |
|---|---|
| Reach at Maximum Height | 1.50 m |
| A. Overall Height | 2.41 m |
| B. Overall Width | 2.38 m |
| C. Width of Cab | 0.89 m |
| D. Track width | 1.92 m |
| E. Wheelbase | 2.85 m |
| F. Length at front wheels | 4.60 m |
| G. Length at fork-holder plate | 5.30 m |
| H. Ground Clearance | 0.42 m |
| Lifting Height | 5.80 m |
| Reach at Maximum Height | 0.80 m |
| A. Overall Height | 2.00 m |
| B. Overall Width | 2.04 m |
| D. Track Width | 1.64 m |
| E. Wheelbase | 2.69 m |
| F. Length at Front Wheels | 3.80 m |
| G. Length at fork-holder plate | 4.40 m |
| H. Ground Clearance | 0.34 m |
Weights & Electrical
| Gross Vehicle Weight | 7,400 kg |
|---|---|
| Fork mounted lift hook | 266 & 307 COMPACT SERIES |
| Gross Vehicle Weight (with forks) | 6,300 kg |
Powertrain & Systems
| Drive 4 x | 4 x 4 |
|---|---|
| Steering | 4WS/Front Steer/Crab Steer |
| Steering 4WS/Front Steer/Crab Steer | 4WS/Front Steer/Crab Steer |
| Tyres | 405/70 – 20 |
| Tyres (Optional) | 405/70 – 24 |
Hydraulics & Capacities
| Hydraulic System Load Sensing Piston Type | 132 L/min |
|---|---|
| Fuel Tank Capacity | 140 L |
| Hydraulic Reservoir | 160 L |
| Hydraulic System (Gear Pump) | 94 L/min @ 2400 rpm |
| Fuel Tank Capacity | 91 L |
| Hydraulic Reservoir | 64 L |
Lubricants & Fluids
| Engine Oil | 7.9 L |
|---|---|
| Coolant | 19.7 L |
| Engine Oil | 10 L |
| Coolant | 15 L |
