9K Telehandler · JLG

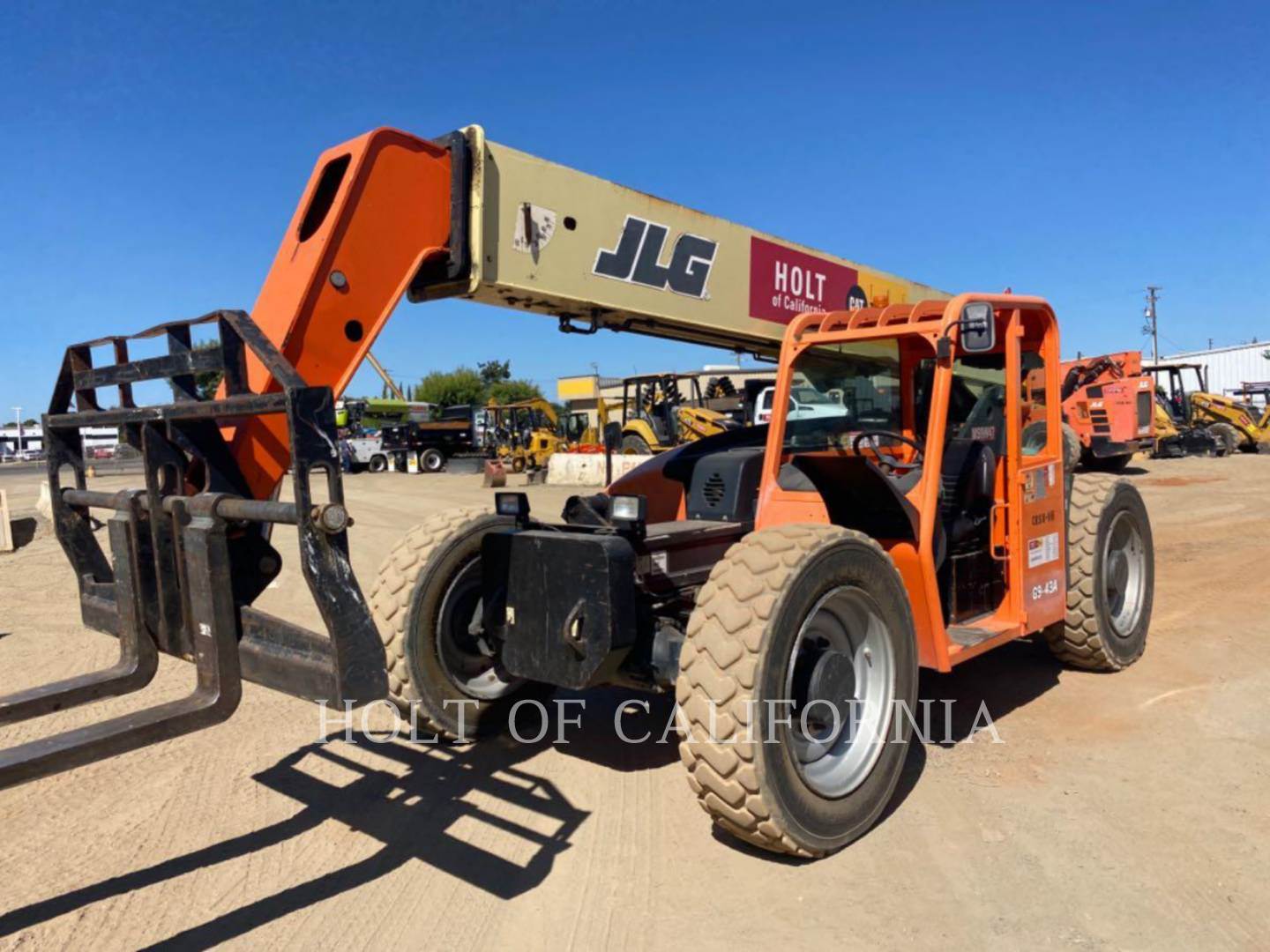

JLG G9-43A Specs
Quick-reference specifications for the JLG G9-43A telehandler, taken from the manufacturer’s spec sheet.
- Maximum Lift Height
- 43 ft13.1 m
Performance 8 specs
| Lift Speed (boom retracted) – Down | 8 sec |
|---|---|
| Boom Speed – Extended | 15 sec |
| Boom Speed – Retracted | 7 sec |
| Travel Speed Forward | 19.5 mph (31.4 kmph) |
| Drawbar Pull (loaded) | 19,200 lb (8,709 kg) |
| Rated Speed | 2,500 rpm |
| Sheet Material Carriage | 72 in (1.8 m) |
| Outside Turning Radius | 144 in (3.67 m) |
Dimensions 4 specs
| Maximum Lift Height | 43 ft (13.1 m) |
|---|---|
| Length (less forks) | 237 in (6.02 m) |
| Width | 95.3 in (2.42 m) |
| Ground Clearance | 19 in (483 mm) |
Power / Engine 4 specs
| Engine – Make and Model | John Deere 4045TF150 |
|---|---|
| No. of Cylinders | 4 |
| Displacement | 276 cu in (4.5 L) |
| Electrical System – Voltage | 12 V |
Hydraulics / Fluids 2 specs
| Fuel Tank | 38 gal (141 L) |
|---|---|
| Auxiliary Hydraulic Circuit | 1.25 cu yd (0.95 m3) — 74 in (1.9 m) |
