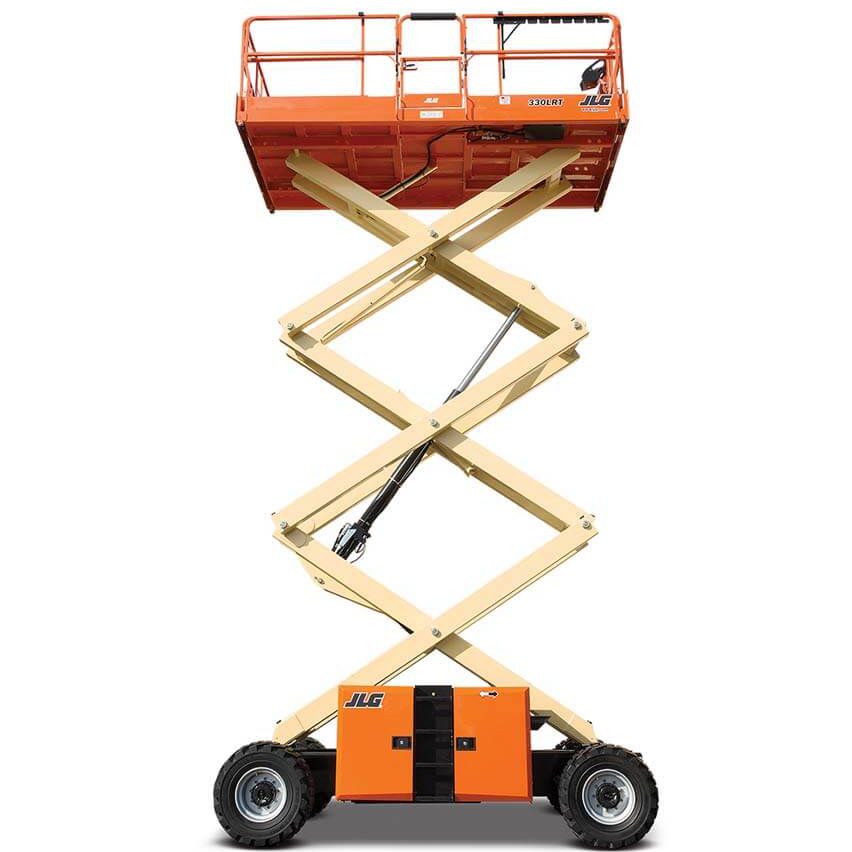

JLG 330LRT Specs
Quick-reference specifications for the JLG 330LRT scissor lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 2,250 lb1,020 kg
- Capacity with Dual Extensions
- 2,000 lb907 kg
- Platform Height–Elevated
- 33 ft10.06 m
Performance 4 specs
| Capacity with Dual Extensions | 2,000 lb (907 kg) |
|---|---|
| Number of Occupants | 6 |
| Tilt Rating | 3.0 degrees |
| Platform Extension | 4 ft (1.2 m) |
Dimensions 3 specs
| Platform Height–Elevated | 33 ft (10.06 m) |
|---|---|
| Full Height | 32 ft |
| Wheelbase | 9 ft 9 in (3.0 m) |
Weight 2 specs
| Weight w/One Extension | 11,820 lb (5,372 kg) |
|---|---|
| Ground Bearing Pressure | 73 psi (5.1 kg/cm2) |
Hydraulics / Fluids 2 specs
| Platform Capacity | 2,250 lb (1,020 kg) |
|---|---|
| Capacity on Platform Extension | 500 lb (227 kg) |
