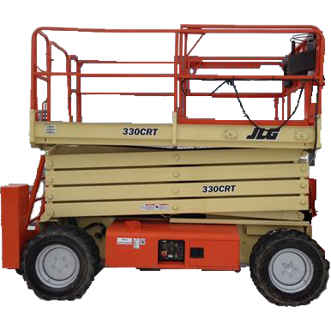

JLG 330CRT Specs
Quick-reference specifications for the JLG 330CRT scissor lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 1,000 lb450 kg
- Platform Height – Elevated
- 33 ft10.06 m
- Platform Height – Stowed
- 5 ft 6.5 in1.69 m
- Maximum Gradeability
- 35%
Performance 6 specs
| Platform Capacity | 1,000 lb (450 kg) |
|---|---|
| Platform Extension Capacity | 250 lb (113 kg) |
| Lift/Lower Time | 38/42 seconds |
| Maximum Travel Speed | 3.5 mph (5.6 kph) |
| Maximum Gradeability | 35% |
| Turning Radius (Inside) | 7 ft (2.13 m) |
Dimensions 12 specs
| Platform Height – Elevated | 33 ft (10.06 m) |
|---|---|
| Platform Height – Stowed | 5 ft 6.5 in (1.69 m) |
| Platform Railing Height | 3 ft 7.5 in (1.1 m) |
| Overall Height (Rails Up) | 9 ft (2.74 m) |
| Overall Height (Rails Down) | 6 ft 5.5 in (1.97 m) |
| Platform Size | 65 x 115 in (1.65 x 2.92 m) |
| Platform Extension | 3 ft (91 cm) |
| Overall Width | 5 ft 9 in (1.75 m) |
| Overall Length | 10 ft 2 in (3.1 m) |
| Wheelbase | 90.5 in (2.3 m) |
| Break-over Ground Clearance | 10 in (25 cm) |
| Maximum Drive Height | Full Elevation |
Weight 1 spec
| Gross Vehicle Weight | 9,100 lb (4,128 kg) |
|---|
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 13 gal (49 L) |
|---|---|
| Hydraulic Reservoir | 18 gal (68 L) |
