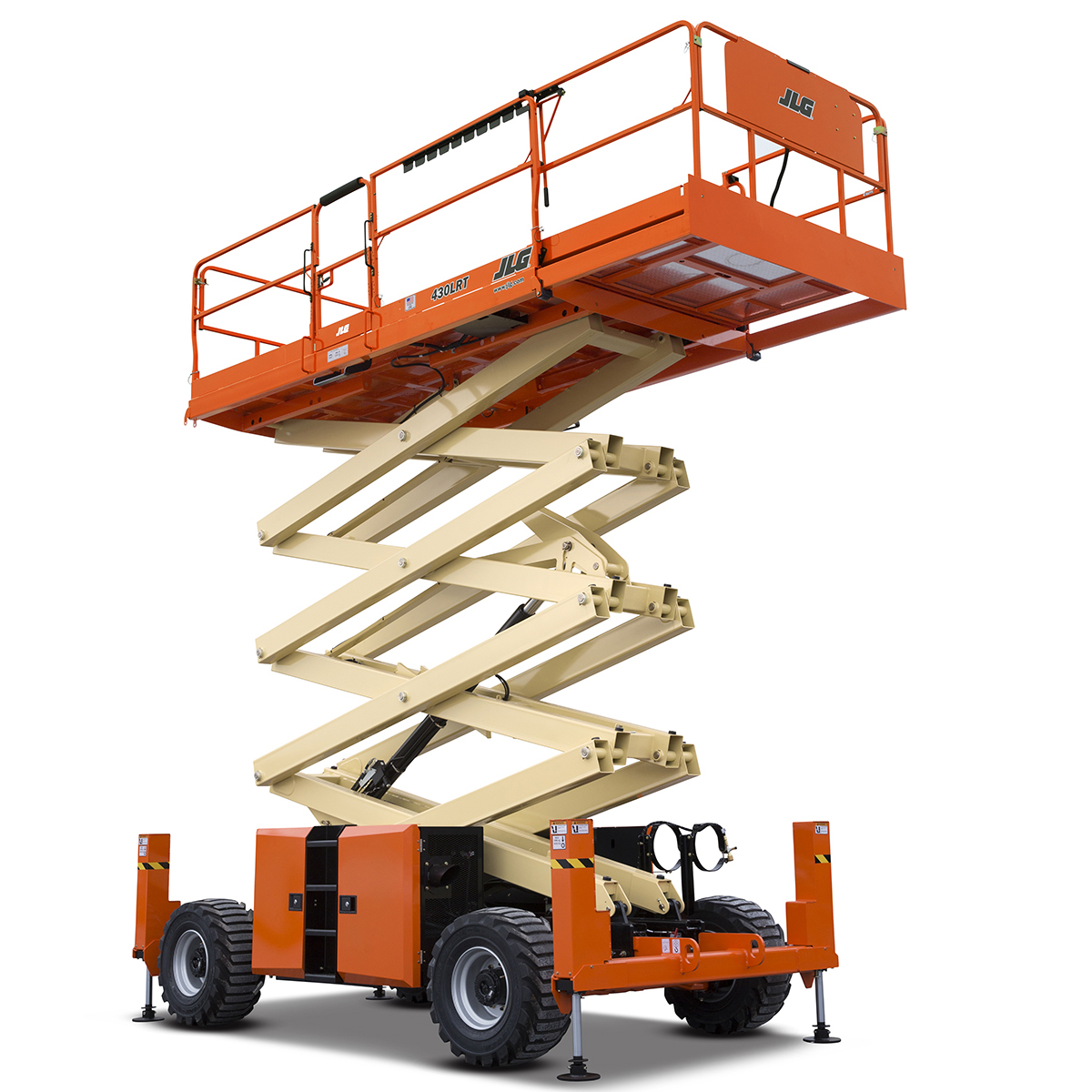

JLG 430LRT Specs
Quick-reference specifications for the JLG 430LRT scissor lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 1,500 lb680 kg
- Capacity with Dual Extensions
- 1,250 lb567 kg
- Platform Height–Elevated
- 43 ft13.11 m
- Platform Height–Lowered
- 6 ft .5 in1.8 m
Performance 7 specs
| Platform Capacity | 1,500 lb (680 kg) |
|---|---|
| Capacity with Dual Extensions | 1,250 lb (567 kg) |
| Lift/Lower Time | 45/42 seconds |
| Gradeability | 45% |
| Tilt Rating | 3.0 degrees |
| Turning Radius (Inside) | 8 ft 10.5 in (2.7 m) |
| Turning Radius (Outside) | 19 ft 5.5 in (5.9 m) |
Dimensions 7 specs
| Platform Height–Elevated | 43 ft (13.11 m) |
|---|---|
| Maximum Drive Height | Full Height |
| Platform Height–Lowered | 6 ft .5 in (1.8 m) |
| Platform Size | 70.5 x 149.8 in (1.8 x 3.8 m) |
| Overall Length | 12 ft 10 in (3.9 m) |
| Overall Width | 7 ft 9 in (2.4 m) |
| Ground Clearance | 13.6 in (34.5 cm) |
Weight 1 spec
| Ground Bearing Pressure | 83 psi (5.8 kg/cm2) |
|---|
