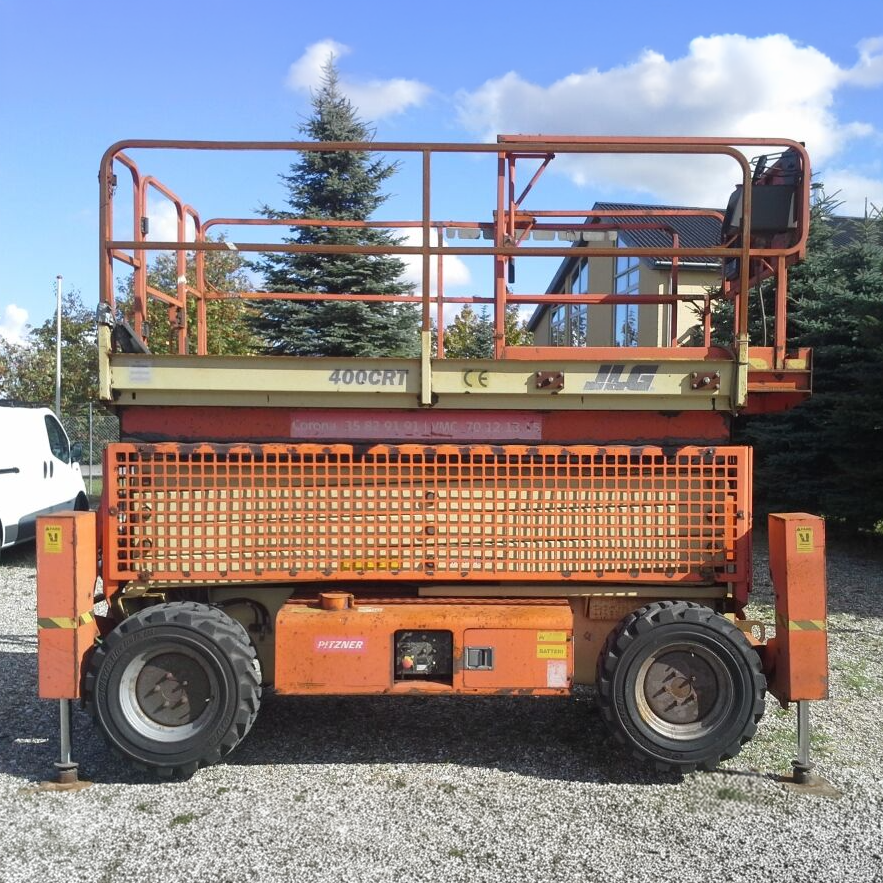

JLG 400CRT Specs
Quick-reference specifications for the JLG 400CRT scissor lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 800 lb360 kg
- Platform Height – Elevated
- 40 ft12.19 m
- Platform Height – Stowed
- 6 ft 8.5 in2.04 m
Performance 2 specs
| Platform Capacity | 800 lb (360 kg) |
|---|---|
| Lift/Lower Time | 54/50 seconds |
Dimensions 4 specs
| Platform Height – Elevated | 40 ft (12.19 m) |
|---|---|
| Platform Height – Stowed | 6 ft 8.5 in (2.04 m) |
| Overall Height (Rails Up) | 9 ft 2.5 in (2.81 m) |
| Maximum Drive Height | 30 ft (9.1 m) |
Weight 1 spec
| Gross Vehicle Weight | 10,020 lb (4,545 kg) |
|---|
Power / Engine 2 specs
| Dual Fuel Engine | Kubota 750 24.5 hp (18.3 kW) |
|---|---|
| Diesel Engine | Kubota 1105 28 hp (21.7 kW) |
