General Aerial Work Platform · JLG

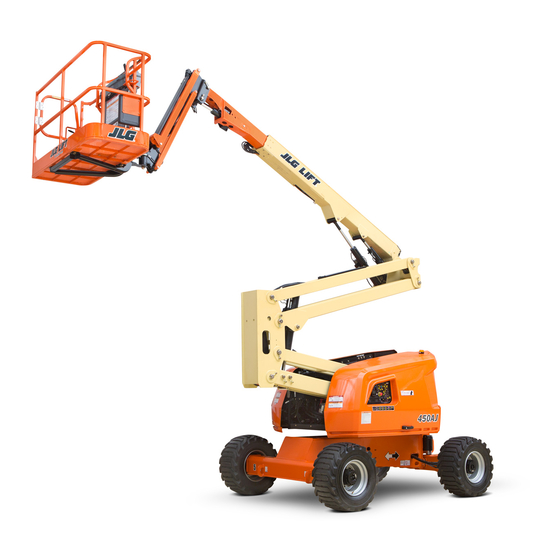

JLG 450A Specs
Quick-reference specifications for the JLG 450A boom lift, compiled from published specifications.
- Operating Weight 2WD
- 14,499.9 lb6,577 kg
- Gradeability 2WD
- 30%
Performance 12 specs
| Max Platform Height | 45 ft (13.72 m) |
|---|---|
| Max Horizontal Reach | 24.51 ft (7.47 m) |
| Up & Over Height | 24.08 ft (7.34 m) |
| Platform Rotation | 180 degrees |
| Swing | 355 degrees non-continuous |
| Gradeability 2WD | 30% |
| Gradeability 4WD | 45% |
| Max Platform Weight Capacity | 500 lb (227 kg) |
| Max Speed 2WD | 3.5 mph |
| Max Speed 4WD | 4.5 mph |
| Axle Oscillation | 4 in (10.2 cm) |
| Tilt Cutout | 5 degrees |
Dimensions 8 specs
| Overall Length | 21.43 ft |
|---|---|
| Overall Width | 6.83 ft (2.08 m) |
| Overall Height – Mast Lowered | 7.42 ft (2.26 m) |
| Wheelbase | 6.5 ft (1.98 m) |
| Ground Clearance | 14.18 in (36 cm) |
| Turning Radius (Inside/Outside) | 5 ft 8 in / 14 ft (1.73 m / 4.27 m) |
| Platform Inner Width | 29.93 in (0.76 m) |
| Platform Inner Length | 72.05 in (1.83 m) |
Weight 2 specs
| Operating Weight 2WD | 14,499.9 lb (6,577 kg) |
|---|---|
| Max Ground Bearing Pressure | 35-46 psi (2.46-3.23 kg/cm²) |
Power / Engine 4 specs
| Engine Model (Diesel) | F3M1011 or Deutz F3M1011F |
|---|---|
| Gross Power (Diesel) | 47-48 hp (35-36 kW) |
| Fuel Tank Capacity | 16.5-16.6 gal (62.5-63 L) |
| System Voltage | 12 volts |
Hydraulics / Fluids 2 specs
| Hydraulic System Fluid Capacity | 30.1-38 gal (113.8-143.8 L) |
|---|---|
| Max Hydraulic Operating Pressure | 3000-4060 psi (207-280 bar) |
