Boom Lift · JLG

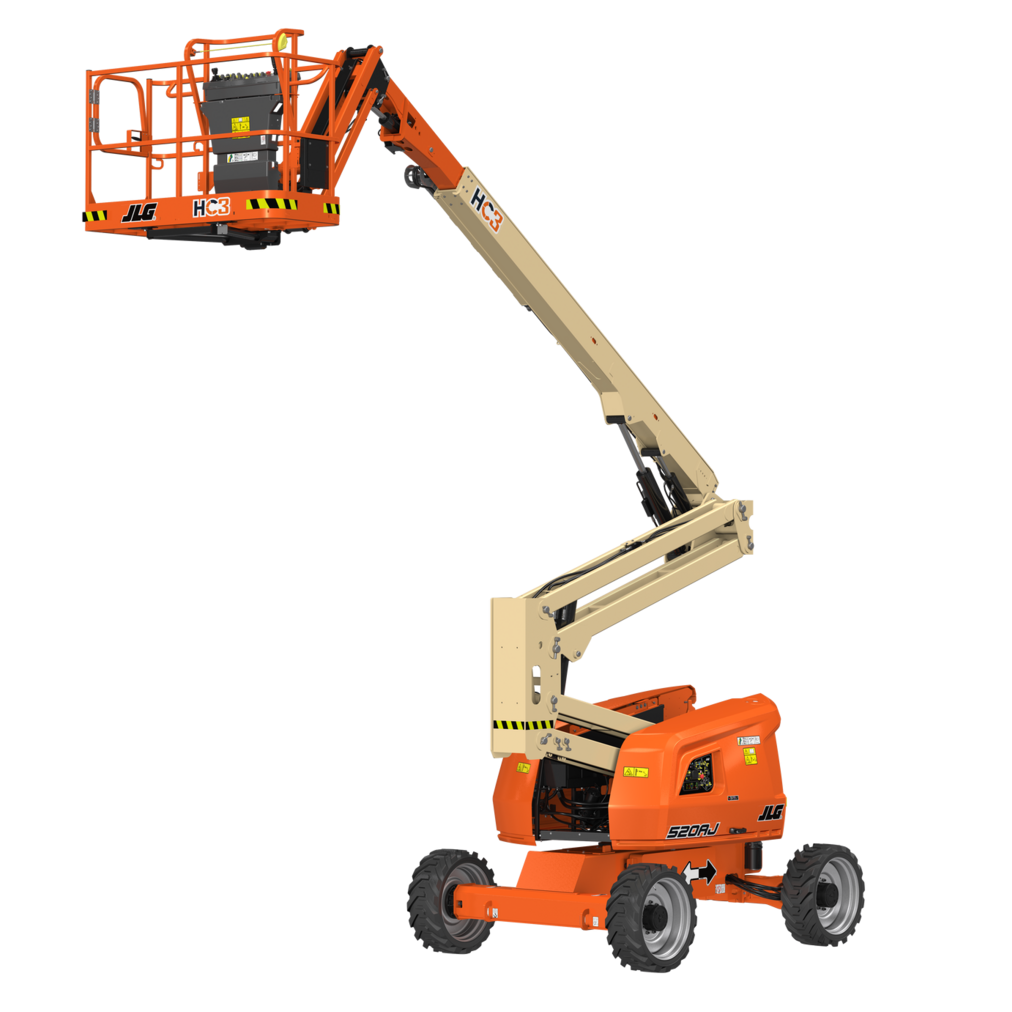

JLG 520AJ HC3 Specs
Quick-reference specifications for the JLG 520AJ HC3 boom lift, compiled from published specifications.
- Platform Capacity (Unrestricted)
- 300 kg
- Working Height
- 59 ft 1 in18 m
- Max Gradeability
- 45%
Performance 11 specs
| Max Platform Height | 52 ft 5 in (16 m) |
|---|---|
| Working Height | 59 ft 1 in (18 m) |
| Horizontal Outreach | 32 ft 9 in (10 m) |
| Platform Capacity (Unrestricted) | 300 kg |
| Max Gradeability | 45% |
| Swing Rotation Angle | 173 degrees |
| Axle Oscillation | 4 in (0.1 m) |
| Travel Speed | 4.2 mph (6.84 km/h) |
| Turning Radius Outside | 15.7 ft (4.78 m) |
| Turning Radius Inside | 6 ft 9 in (2.06 m) |
| Up and Over Height | 7.30 m |
Dimensions 8 specs
| Platform Length | 2.5 ft (0.76 m) |
|---|---|
| Platform Width | 6 ft (1.83 m) |
| Transport/Machine Length | 25.6 ft (7.8 m) |
| Transport/Machine Width | 7.7 ft (2.35 m) |
| Transport/Machine Height | 7.5 ft (2.27 m) |
| Articulating Jib | 4 ft 1 in (1.24 m) |
| Range of Articulation | 145 degrees (+76, -69) |
| Persons Capacity | 3 |
Weight 1 spec
| Machine Weight | 18,970 lb (8,618 kg) |
|---|
Power / Engine 5 specs
| Engine Type | D2.9 L4 |
|---|---|
| Engine Power | 49 hp (36.4 kW) |
| Engine Displacement | 2.9 L |
| Fuel Tank Capacity | 16 gal (60.5 L) |
| Auxiliary Power | 12 V DC |
Hydraulics / Fluids 1 spec
| Hydraulic Reservoir Capacity | 38 gal (144 L) |
|---|
