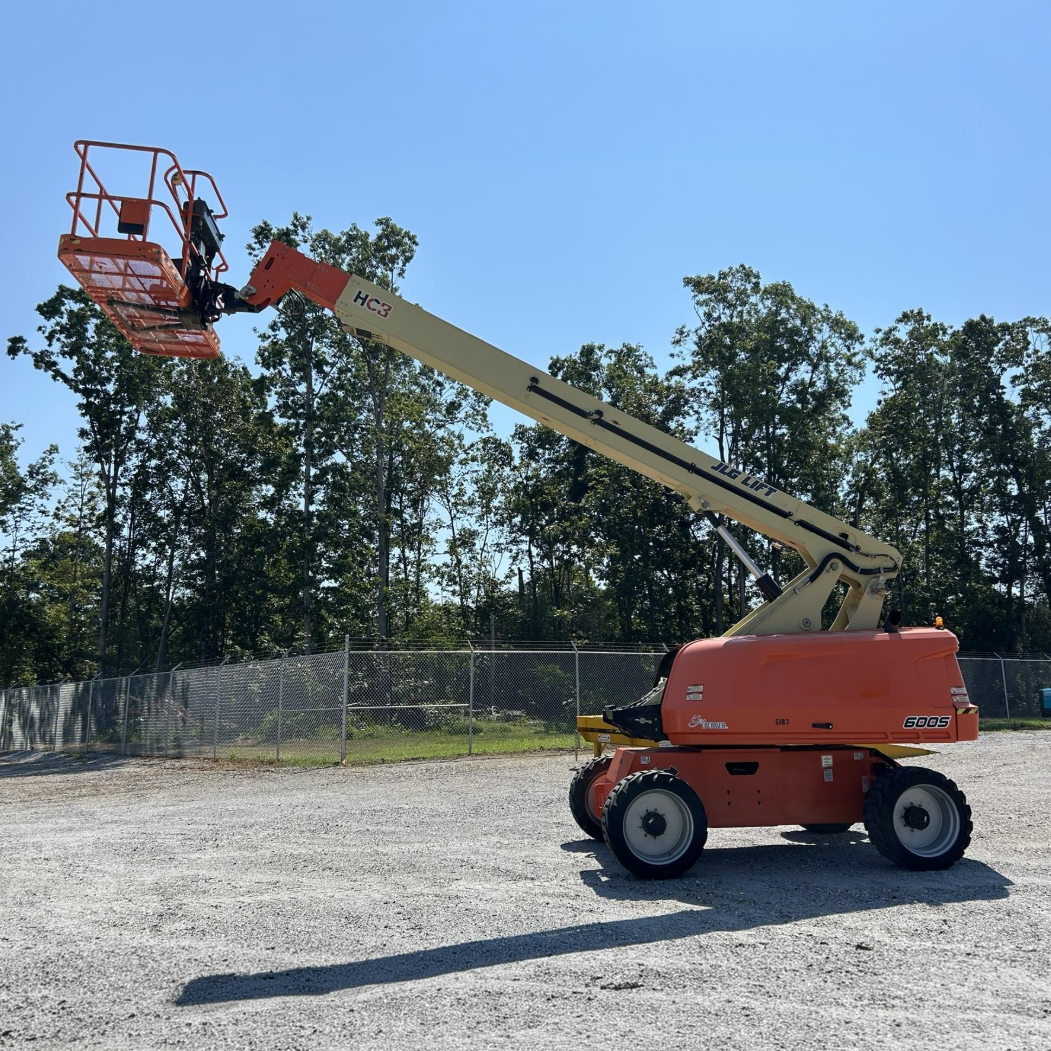

JLG 600S HC3 Spec Sheet
Quick-reference specifications for the JLG 600S HC3. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform Capacity Restricted: 750/1,000-lb / 340/454-kg
Platform Height 59-ft 8-in /: 18.18-m
Horizontal Outreach 50-ft 2-in /: 15.29-m
Platform Capacity (Restricted) 750/1,000-lb /: 340/454-kg
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Platform Height 59-ft 8-in / | 18.18-m |
|---|---|
| Horizontal Outreach 50-ft 2-in / | 15.29-m |
| Platform Capacity Restricted | 750/1,000-lb / 340/454-kg |
| Swing | 360 Degrees Continuous |
| Platform Capacity (Restricted) 750/1,000-lb / | 340/454-kg |
| Platform Capacity (Unrestricted) 660-lb / | 300-kg |
| Gradeability | 45% |
| Turning Radius 2WS (Inside/Outside) Inside | 9-ft 6.5-in / 2.91-m Outside: 18-ft 3.9-in / 5.95-m |
| Tailswing 4-ft / | 1.22-m |
Dimensions
| Platform Width 36-in / | 0.91-m |
|---|---|
| Platform Length 96-in / | 2.44-m |
| Machine Width 8-ft 2-in / | 2.48-m |
| Machine Height 8-ft 2.4-in / | 2.50-m |
| Machine Length 28-ft 7-in / | 8.71-m |
| Wheelbase 8-ft 2.7-in / | 2.5-m |
| Ground Clearance 11.3-in / | 29-cm |
Weights & Electrical
| the machine is on a slope that exceeds | 5 Degrees. |
|---|---|
| Auxiliary Power | 12V DC |
Powertrain & Systems
| Drive Speed 3.8 mph / | 6.1 km/h |
|---|---|
| Axle Oscillation 7.4-in / | 19-cm |
Hydraulics & Capacities
| Platform Rotator | 160 Degrees Hydraulic |
|---|---|
| Max. Ground Bearing Pressure 84 psi / | 5.9 kg/cm² |
| Fuel Tank Capacity 31 gal / | 117 L |
| Hydraulic Reservoir 34 gal / | 129 L |
