General Aerial Work Platform · JLG

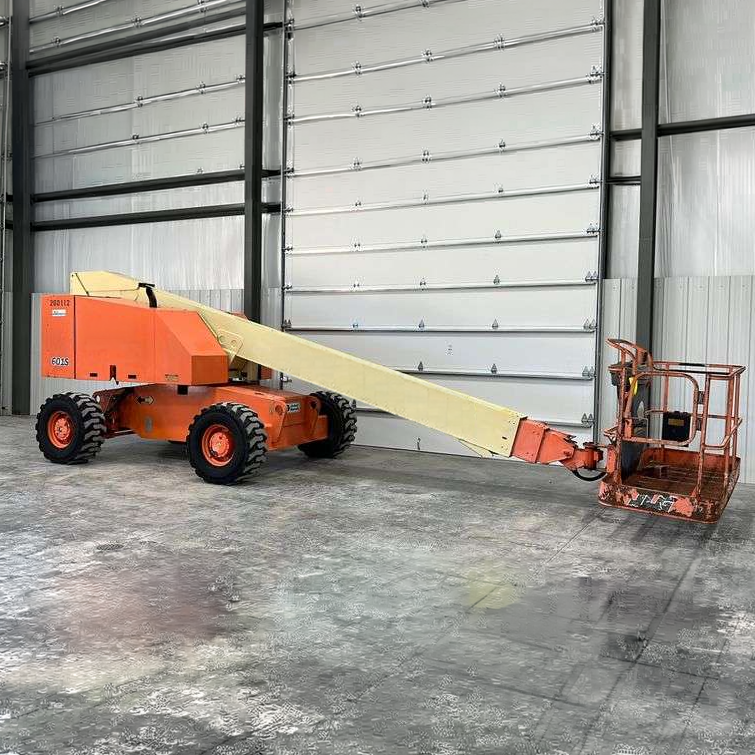

JLG 601S Specs
Quick-reference specifications for the JLG 601S boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity – Restricted
- 1000 lb450 kg
- Platform Height
- 60 ft18.29 m
- Gradeability
- 45%
Performance 8 specs
| Horizontal Outreach | 49 ft (14.93 m) |
|---|---|
| Swing | 360 Degrees Continuous |
| Platform Capacity – Restricted | 1000 lb (450 kg) |
| Platform Capacity – Unrestricted | 500 lb (227 kg) |
| Drive Speed | 3.0 mph (4.8 kph) |
| Gradeability | 45% |
| Axle Oscillation | 8 in (20.4 cm) |
| Turning Radius (Inside/Outside) | 11 ft 5 in./17 ft 8 in (3.48 m/5.38 m) |
Dimensions 8 specs
| Platform Height | 60 ft (18.29 m) |
|---|---|
| Platform Size | 30 in x 72 in (0.76 m x 1.83 m) |
| Overall Width | 8 ft (2.44 m) |
| Tailswing | 3 ft 9 in (1.14 m) |
| Stowed Height | 8 ft 4 in (2.54 m) |
| Stowed Length | 27 ft 5 in (8.36 m) |
| Wheelbase | 8 ft 1 in (2.46 m) |
| Ground Clearance | 11 in (28 cm) |
Weight 2 specs
| Gross Vehicle Weight | 21,500 lb (9,752 kg) |
|---|---|
| Max. Ground Bearing Pressure | 64 psi (4.5 kg/cm2) |
Power / Engine 3 specs
| Dual Fuel Engine, Ford LRG-425 EF1 | 82 hp (61 kW) |
|---|---|
| Diesel Engine, Deutz F3M1011F | 47 hp (35 kW) |
| Auxiliary Power | 12 V DC |
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 26 gal (98.4 L) |
|---|---|
| Hydraulic Reservoir | 31 gal (117.3 L) |
