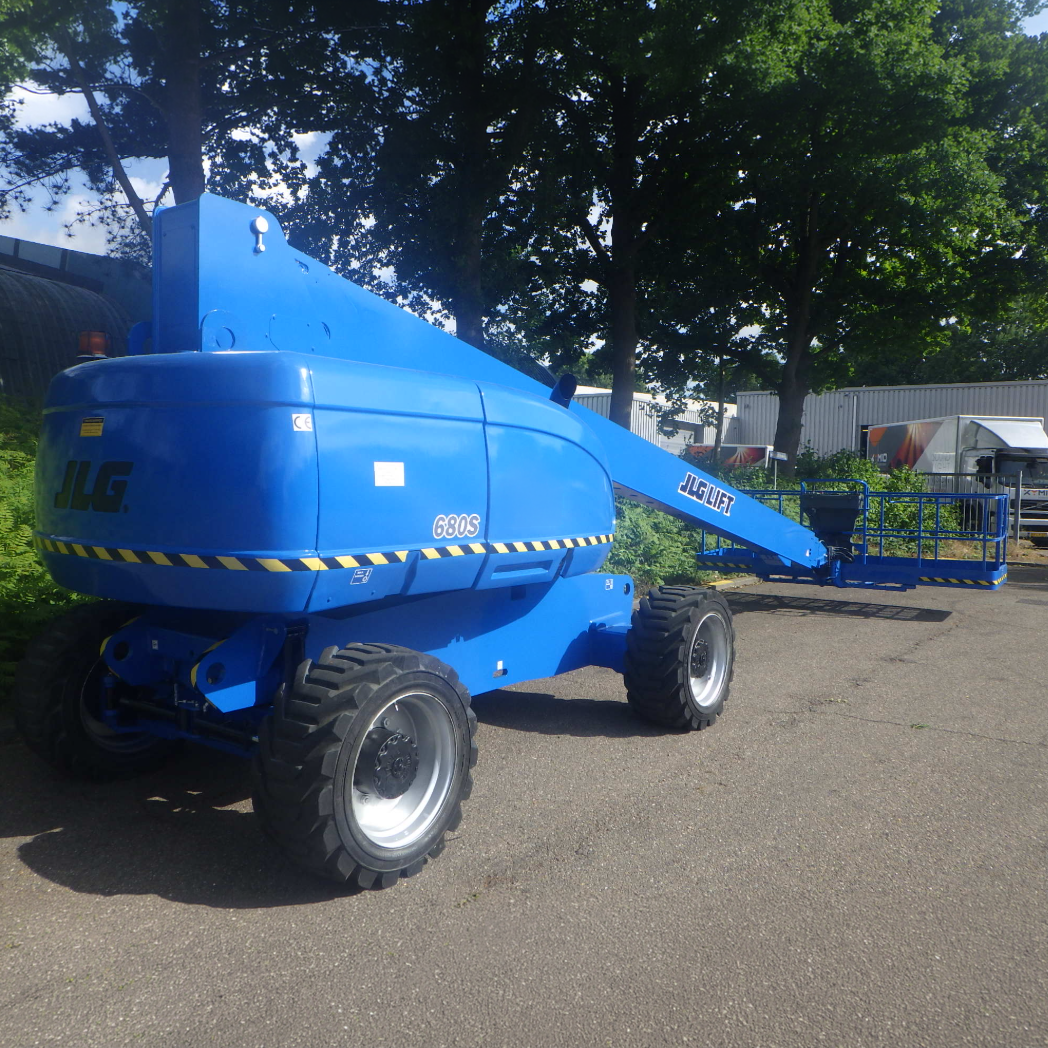

JLG 680S Spec Sheet
Quick-reference specifications for the JLG 680S. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform Height: 20.73 m
Horizontal Outreach: 18.00 m
B. Overall Width: 2.49 m
D. Stowed Height: 3.02 m
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Platform Height | 20.73 m |
|---|---|
| Horizontal Outreach | 18.00 m |
| Swing (continuous) | 360° |
| C. Tailswing (working condition) | 1.42 m |
| Gradeability | 45% |
| Turning Radius – Inside | 3.66 m |
| Turning Radius – Outside | 6.86 m |
Dimensions
| A. Platform Size 1.22 m x | 4.06 m |
|---|---|
| B. Overall Width | 2.49 m |
| D. Stowed Height | 3.02 m |
| E. Overall Length | 12.23 m |
| F. Wheelbase | 3.05 m |
| G. Ground Clearance | 0.30 m |
Weights & Electrical
| amber beacon. | 7 Includes platform |
|---|---|
| Auxiliary Power | 12V DC |
Powertrain & Systems
| Drive Speed | 5.6 km/h |
|---|---|
| Tyres 18 – | 625 Foam Filled |
| Axle Oscillation | 0.20 m |
Hydraulics & Capacities
| status. | 2 Low oil pressure |
|---|---|
| Platform Rotator (hydraulic) | 170° |
| Maximum Ground Bearing Pressure | 5.9 kg/cm2 |
| Fuel Tank Capacity | 117 L |
| Hydraulic System | 227 L |
