General Aerial Work Platform · JLG

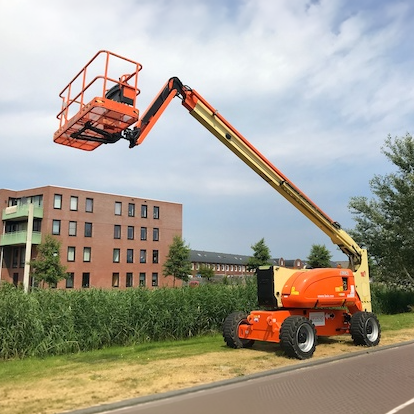

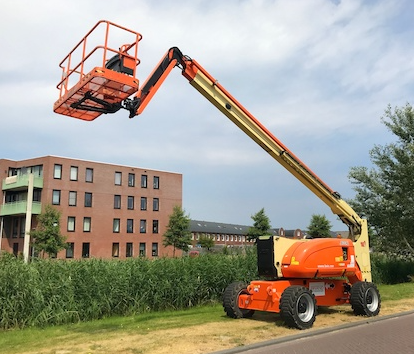

JLG 800S Specs
Quick-reference specifications for the JLG 800S boom lift, compiled from published specifications.
- Platform Capacity – Restricted
- 1,000 lb453.59 kg
- Operating Weight
- 33,030 lb14,975 kg
- Gradeability – 2WD
- 25%
Performance 10 specs
| Max Platform Height | 80 ft (24.38 m) |
|---|---|
| Max Horizontal Reach | 71 ft (21.64 m) |
| Platform Capacity – Restricted | 1,000 lb (453.59 kg) |
| Platform Capacity – Unrestricted | 500 lb (226.80 kg) |
| Drive Speed – 2WD | 3.5 mph (5.60 km/h) |
| Drive Speed – 4WD | 3.5 mph (5.60 km/h) |
| Gradeability – 2WD | 25% |
| Gradeability – 4WD | 45% |
| Swing | 360° continuous |
| Axle Oscillation | 8 in (0.2 m) |
Dimensions 7 specs
| Overall Length | 37 ft 3 in (11.35 m) |
|---|---|
| Overall Width | 8 ft 2 in (2.49 m) |
| Overall Height – Stowed | 9 ft 11 in (3.02 m) |
| Ground Clearance | 1 ft (0.3 m) |
| Turning Radius – Outside | 19.8 ft to 22.5 ft |
| Tailswing Radius | 4 ft 8 in (1.42 m) |
| Platform Dimensions | 8 ft × 3 ft (2.44 m × 0.91 m) |
Weight 1 spec
| Operating Weight | 33,030 lb (14,975 kg) |
|---|
Power / Engine 3 specs
| Dual Fuel Engine Type | Ford MSG425 84 hp |
|---|---|
| Fuel Tank Capacity | 31 gal (117.35 L) |
| System Voltage | 12 V |
Hydraulics / Fluids 1 spec
| Hydraulic System Fluid Capacity | 48 gal (181.8 L) |
|---|
