Boom Lift · JLG

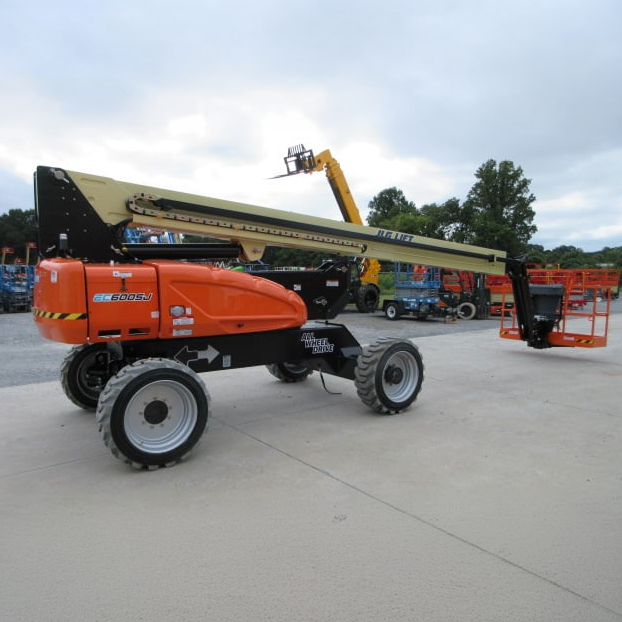

JLG EC600SJ Specs
Quick-reference specifications for the JLG EC600SJ boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 500 lb227 kg
- Platform Height
- 60 ft 3 in18.36 m
- Weight
- 16,710 lb7,580 kg
Performance 7 specs
| Drive Speed | 3.0 mph (4.8 km/h) |
|---|---|
| Horizontal Outreach | 43 ft 3 in (13.18 m) |
| Platform Capacity | 500 lb (227 kg) |
| Swing | 400 Degrees Non-Continuous |
| Jib Range of Articulation (Vertical) | 145 Degrees (+75, -70) |
| Turning Radius Inside (2WS/4WS) | 4 ft (1.22 m) |
| Turning Radius Outside (2WS/4WS) | 15 ft 2.5 in (4.64 m) |
Dimensions 9 specs
| Platform Height | 60 ft 3 in (18.36 m) |
|---|---|
| Platform Width | 30 in (76 cm) |
| Platform Length | 72 in (1.83 m) |
| Machine Width | 7 ft 11 in (2.41 m) |
| Tailswing | 4 ft (1.22 m) |
| Machine Height | 8 ft 4 in (2.54 m) |
| Machine Length | 30 ft 9 in (9.37 m) |
| Wheelbase | 9 ft (2.74 m) |
| Ground Clearance | 10 in (26 cm) |
Weight 2 specs
| Weight | 16,710 lb (7,580 kg) |
|---|---|
| Max. Ground Bearing Pressure | 52 psi (3.7 kg/cm²) |
Power / Engine 1 spec
| Batteries | 8 x 6 V, 415 amp-hr |
|---|
Hydraulics / Fluids 1 spec
| Hydraulic System – Capacity | 15 gal (56.78 L) |
|---|
