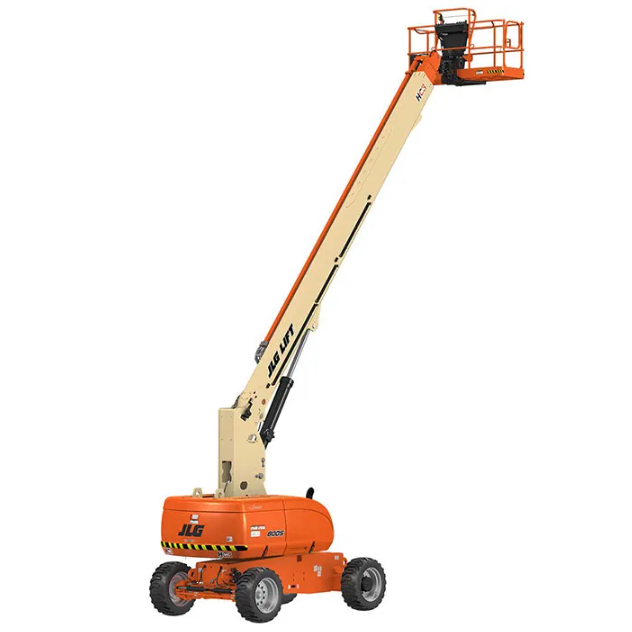

JLG 800S HC3 Spec Sheet
Quick-reference specifications for the JLG 800S HC3. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform Capacity Restricted: 750/1,000-lb / 340/454-kg
Platform Height 80-ft /: 24.38-m
Horizontal Outreach 71-ft 3-in /: 21.78-m
Platform Capacity (Restricted) 750/1,000-lb /: 340/454-kg
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Platform Height 80-ft / | 24.38-m |
|---|---|
| Horizontal Outreach 71-ft 3-in / | 21.78-m |
| Platform Capacity Restricted | 750/1,000-lb / 340/454-kg |
| Platform Height (Elevated) 80-ft / | 24.38-m |
| Swing | 360 Degrees Continuous |
| Platform Capacity (Restricted) 750/1,000-lb / | 340/454-kg |
| Platform Capacity (Unrestricted) 500-lb / | 227-kg |
| Gradeability 2WD | 25% |
| Gradeability 4WD | 45% |
| Turning Radius (Inside) 14-ft 7.7-in / | 4.5-m |
| Turning Radius (Outside) 21-ft 7-in / | 6.6-m |
| D. Tailswing 4-ft 8-in / | 1.42-m |
Dimensions
| A. Platform Width 36-in / | 91-cm |
|---|---|
| B. Platform Length 96-in / | 2.44-m |
| C. Machine Width 8-ft 2-in / | 2.49-m |
| E. Machine Height 9-ft 8.1-in / | 2.95-m |
| F. Machine Length 37-ft 6-in / | 11.43-m |
| G. Wheelbase 10-ft / | 3.05-m |
| H. Ground Clearance 11-in / | 28-cm |
Weights & Electrical
| the machine is on a slope that exceeds | 4 Degrees. |
|---|
Powertrain & Systems
| Drive Speed 3.5-mph / | 5.6 km/h |
|---|---|
| Drive Speed 4.13-mph / | 6.65 km/h |
Hydraulics & Capacities
| Platform Rotator | 180 Degrees Hydraulic |
|---|---|
| Max. Ground Bearing Pressure 72 psi / | 5.06 kg/cm² |
| Fuel Tank Capacity 31 gal / | 117.35 L |
| Capacity 48 gal / | 181.7 L |
