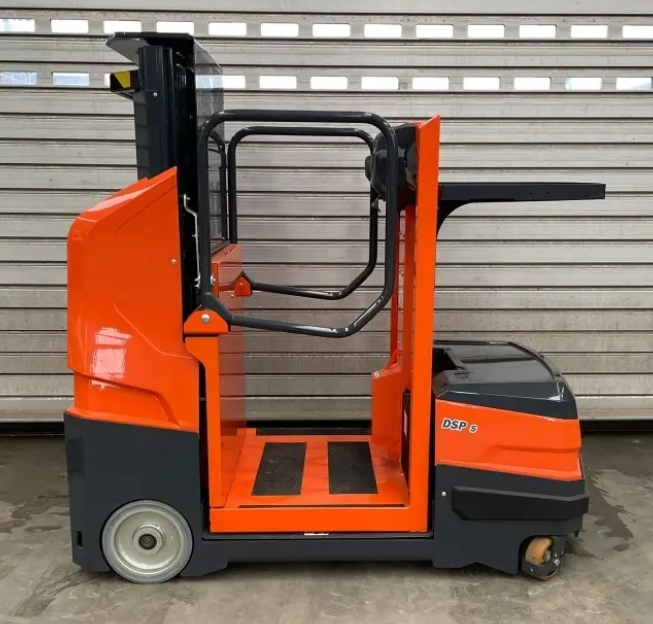

JLG DSP S Specs
Quick-reference specifications for the JLG DSP S vertical mast, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 120 kg
- Platform Height
- 3 m
- Working height
- 5 m
- Gradeability
- 10%
Performance 8 specs
| Platform Capacity | 120 kg |
|---|---|
| Low platform entry | 20 cm |
| Working height | 5 m |
| Operator platform capacity | 120 kg |
| Material tray capacity | 100 kg |
| Drive speed – lowered | 8.00 km/h |
| Turning radius – outside | 1.32 m |
| Gradeability | 10% |
Dimensions 12 specs
| Platform Height | 3 m |
|---|---|
| Overall Height – Stowed | 1.50 m |
| Overall Length | 1.54 m |
| Ground Entry Height | 0.20 m |
| Platform size (W x L) – dual side entry | 0.67 m x 0.54 m |
| Minimum tray stowed height – manual | 0.86 m |
| Minimum tray stowed height – powered | 0.61 m |
| Maximum tray stowed height | 1.30 m |
| Maximum tray elevated height | 4.10 m |
| Maximum Drive Height | 3 m |
| Break over angle | 10% |
| Wheelbase | 1.13 m |
Weight 3 specs
| Maximum ground bearing pressure front casters | 12 kg/cm² |
|---|---|
| Maximum ground bearing pressure rear wheels | 16 kg/cm² |
| Wheel diameter – drive wheel | 0.23 m |
