Vertical Mast · JLG

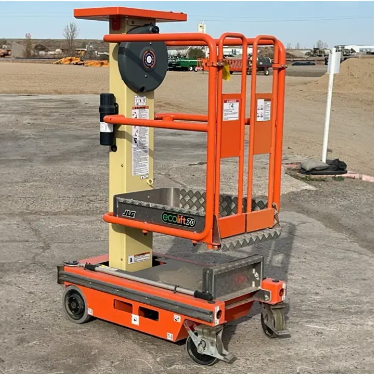

JLG Ecolift 70 Specs
Quick-reference specifications for the JLG Ecolift 70 vertical mast, taken from the manufacturer’s spec sheet.
- Rated Capacity
- 330 lb150 kg
- Platform Height
- 7 ft2.20 m
- Working Height
- 13 ft3.96 m
- Weight
- 703 lb319 kg
Performance 4 specs
| Working Height | 13 ft (3.96 m) |
|---|---|
| Rated Capacity | 330 lb (150 kg) |
| Maximum Gradient | 5 degrees |
| Wind Speed | 0 mph |
Dimensions 9 specs
| Platform Height | 7 ft (2.20 m) |
|---|---|
| Stowed Height | 76 in (1.94 m) |
| Machine Width | 29 in (0.74 m) |
| Machine Length | 50.3 in (1.28 m) |
| Platform Size | 33 x 25.5 in (0.85 x 0.65 m) |
| Platform Length | 33 in (0.85 m) |
| Rail Height | 70 in |
| Machine Height (Stowed) | 76 in (1.94 m) |
| Platform Width | 25.5 in (0.65 m) |
Weight 2 specs
| Weight | 703 lb (319 kg) |
|---|---|
| Max Ground Bearing Pressure – Rear | 175 psi (12.3 kg/cm2) |
