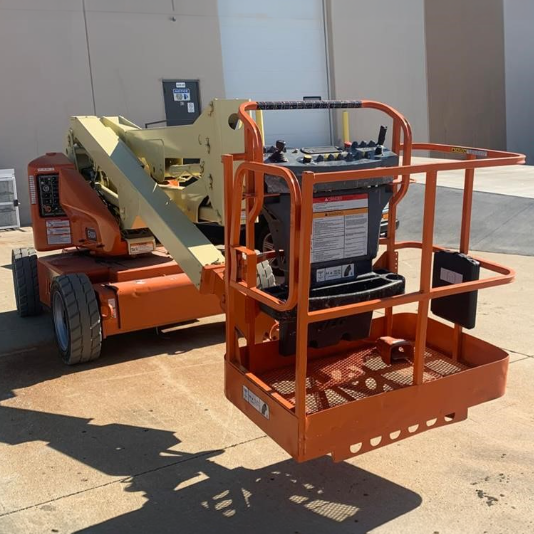

JLG E400A Specs
Quick-reference specifications for the JLG E400A boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 500 lb227 kg
- Platform Height – E450A/E450AJ
- 45 ft13.72 m
- Gradeability – E400AJP/E450A/E450AJP
- 30%
Performance 7 specs
| Horizontal Outreach – E/M400AN | 21 ft 2 in (6.45 m) |
|---|---|
| Horizontal Outreach – E/M400AJP/E/M400AJPN | 22 ft 5 in (6.83 m) |
| Swing | 360° Non-Continuous |
| Platform Capacity | 500 lb (227 kg) |
| Platform Rotator | 180° Hydraulic |
| Gradeability – E400AJP/E450A/E450AJP | 30% |
| Turning Radius (Outside) – E400AJP/E450A/E450AJ | 10 ft 4 in (3.15 m) |
Dimensions 1 spec
| Platform Height – E450A/E450AJ | 45 ft (13.72 m) |
|---|
Weight 2 specs
| Ground Bearing Pressure – E450A/E450AJP | 64 psi (4.48 kg/cm2) |
|---|---|
| Ground Bearing Pressure – E450AJPN | 75 psi (5.25 kg/cm2) |
Power / Engine 2 specs
| Drive Motors | Dual Electric Traction—AC on E400/E450 |
|---|---|
| Diesel Engine Kubota 45 amp | 6.7 hp |
Hydraulics / Fluids 1 spec
| Fuel Tank Capacity | 4 gal (15.2 L) |
|---|
