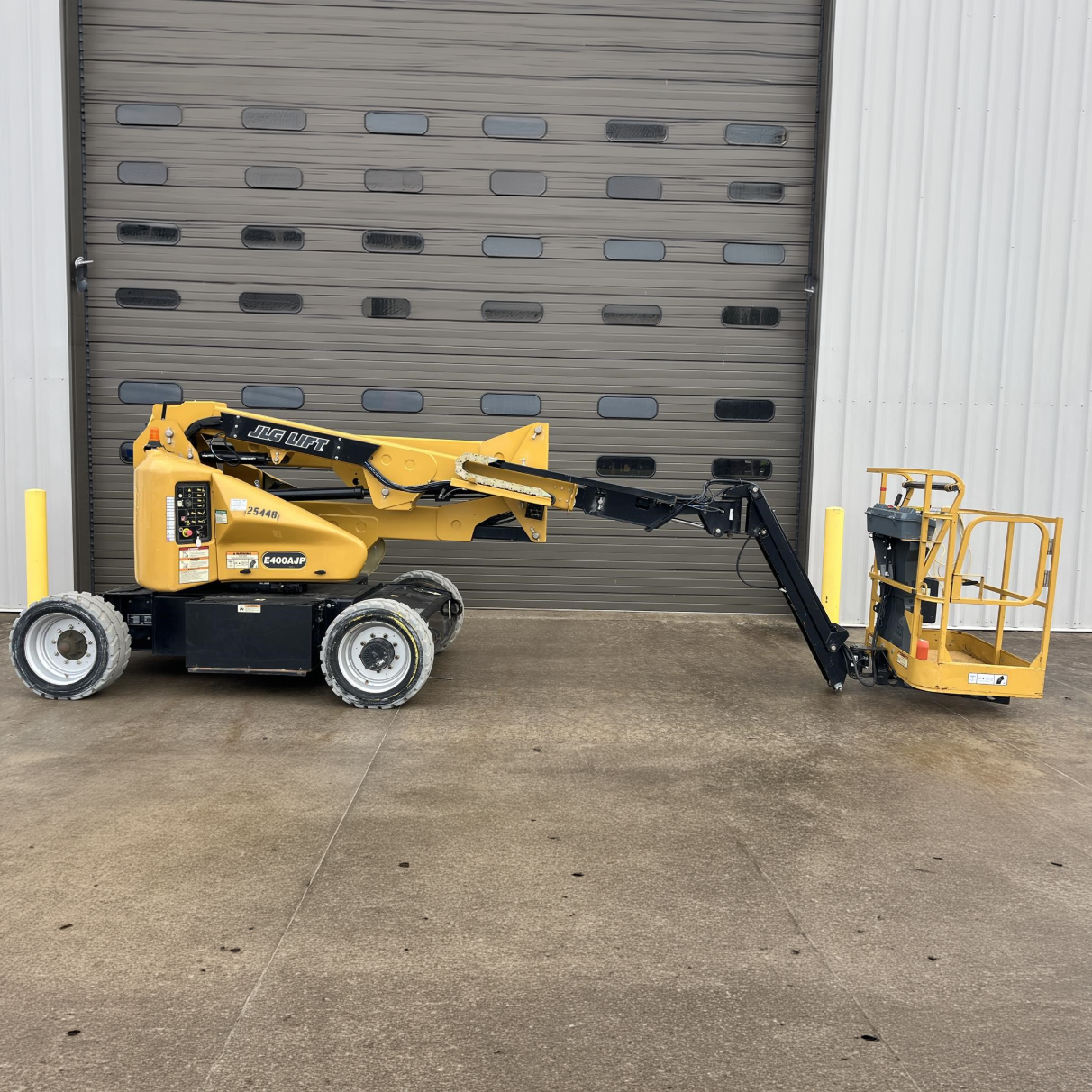

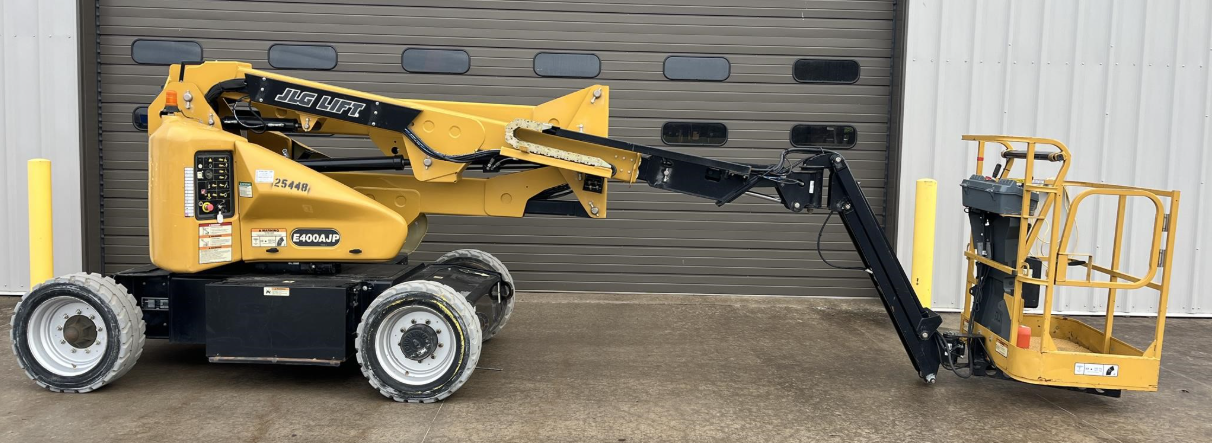

JLG E400AJP Specs
Quick-reference specifications for the JLG E400AJP boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 500 lb227 kg
- Platform Height
- 40 ft12.19 m
- Gradeability
- 30%
Performance 7 specs
| Platform Capacity | 500 lb (227 kg) |
|---|---|
| Swing | 360 Degrees Non-Continuous |
| Jib (range of articulation) | 144 Degrees (+84, -60) Vertical |
| Drive Speed | 3.2 mph (5.2 kmph) |
| Gradeability | 30% |
| Turning Radius (Inside) | 2 ft (61 cm) |
| Turning Radius (Outside) | 10 ft 4 in (3.15 m) |
Dimensions 9 specs
| Platform Height | 40 ft (12.19 m) |
|---|---|
| Up and Over Height | 21 ft 6 in (6.55 m) |
| Platform Size | 30 x 60 in (0.76 x 1.52 m) |
| Overall Width | 5 ft 9 in (1.75 m) |
| Stowed Height | 6 ft 7 in (2.0 m) |
| Stowed Length – With JibPLUS | 18 ft 8 in (5.70 m) |
| Wheelbase | 6 ft 7 in (2.0 m) |
| Ground Clearance | 8.5 in (22 cm) |
| Tire Size/Type | 240/55-17.5 pneumatic |
Power / Engine 4 specs
| Batteries | 8 x 6 V, 370 amp-hr |
|---|---|
| Drive Motors | Dual Electric Traction |
| Brakes | Automatic Spring Applied Multiple Disks |
| Engine Fuel Tank | 4 gal (15.2 L) |
Hydraulics / Fluids 1 spec
| Hydraulic Reservoir | 4 gal (15.2 L) |
|---|
