Boom Lift · JLG

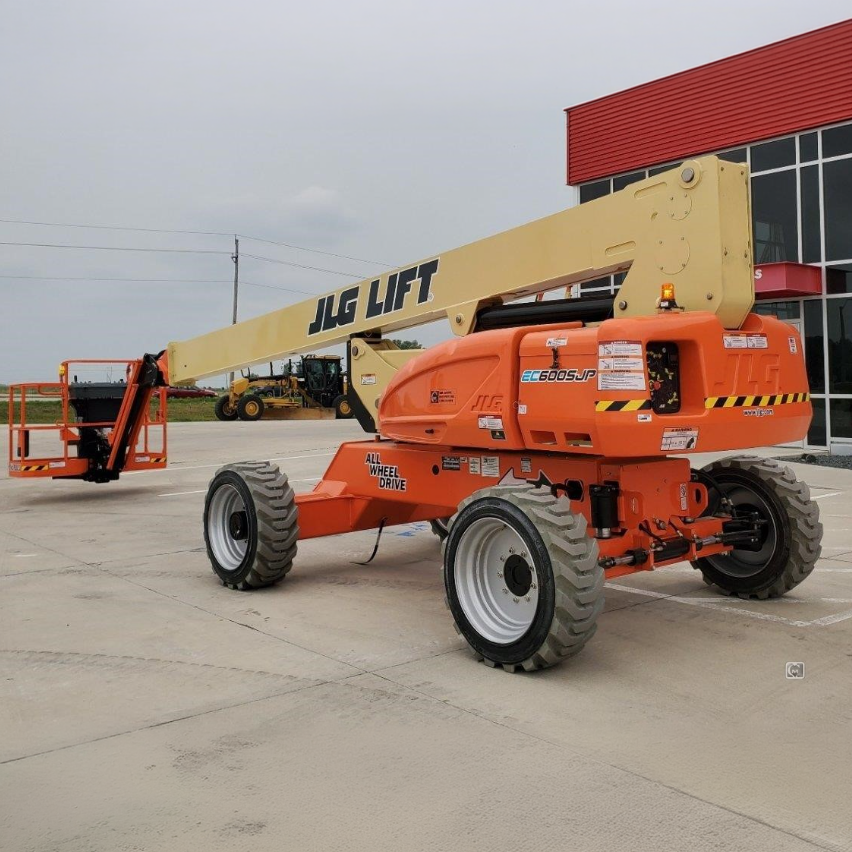

JLG EC600SJP Specs
Quick-reference specifications for the JLG EC600SJP boom lift, compiled from published specifications.
- Platform Capacity (Unrestricted)
- 500 lb226.80 kg
Performance 7 specs
| Axle Oscillation | 7 in (0.18 m) |
|---|---|
| Drive Speed (Platform Lowered) | 3 mph (4.83 km/h) |
| Swing | 400° |
| Jib Range of Articulation | 145° |
| Horizontal Jib Rotation | 180° |
| Platform Capacity (Unrestricted) | 500 lb (226.80 kg) |
| Platform Capacity (ANSI) | 500 lb (226.80 kg) |
Dimensions 9 specs
| Machine Height | 8 ft 4 in (2.54 m) |
|---|---|
| Machine Length | 33 ft 4 in (10.16 m) |
| Machine Width | 7 ft 11 in (2.41 m) |
| Ground Clearance | 1 ft (0.3 m) |
| Platform Dimension A | 2 ft 6 in (0.76 m) |
| Platform Dimension B | 6 ft (1.83 m) |
| Wheelbase | 9 ft (2.74 m) |
| Tail Swing | 4 ft (1.22 m) |
| Turning Radius (Outside) | 15 ft 4 in (4.67 m) |
Weight 1 spec
| Machine Weight | 17,210 lb (7,806.32 kg) |
|---|
Power / Engine 1 spec
| Batteries | 8 x 6 V, 415 A-h |
|---|
Hydraulics / Fluids 1 spec
| Hydraulic Reservoir Capacity | 15 gal (56.78 L) |
|---|
