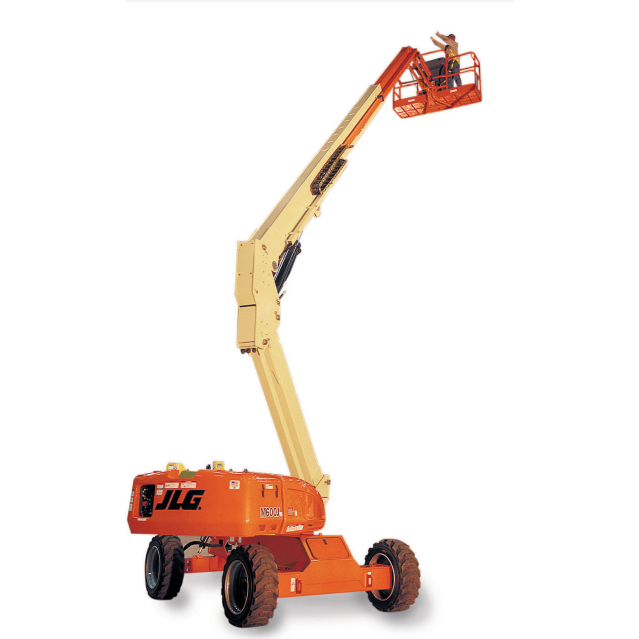

Boom Lift · JLG
JLG M600J Specs
Quick-reference specifications for the JLG M600J boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity – Unrestricted
- 230 kg
- Working Height
- 20.36 m
- Gradeability
- 30%
Performance 11 specs
| Working Height | 20.36 m |
|---|---|
| Working Outreach | 13.84 m |
| Swing (non-continuous) | 400° |
| Platform Capacity – Unrestricted | 230 kg |
| Jib – Range of articulation | 145° Vertical (+75°/ -70°) |
| Drive Speed | 4.8 km/h |
| Gradeability | 30% |
| Axle Oscillation | 0.20 m |
| Turning Radius – Inside | 1.22 m |
| Turning Radius – Outside | 4.64 m |
| Tyres (foam filled/non-marking) | 36/14LL-22.5 |
Dimensions 8 specs
| Jib – Overall Length | 1.24 m |
|---|---|
| Platform Size | 0.76 m x 1.83 m |
| Overall Width | 2.42 m |
| Tailswing (working condition) | 1.23 m |
| Stowed Height | 2.54 m |
| Stowed Length | 9.37 m |
| Wheelbase | 2.74 m |
| Ground Clearance | 0.30 m |
Weight 2 specs
| Maximum Ground Bearing Pressure | 4.1 kg/cm² |
|---|---|
| Machine weight | 7,965 kg |
Power / Engine 2 specs
| Batteries – deep cycle | 8 x 6 V 415 A/hr |
|---|---|
| Drive Motors | Dual Electric Traction |
Hydraulics / Fluids 1 spec
| Platform Rotator (Hydraulic) | 180° |
|---|
