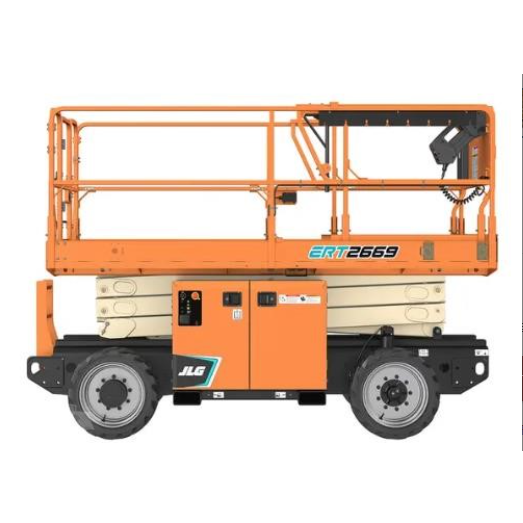

JLG ERT2669 Specs
Quick-reference specifications for the JLG ERT2669 scissor lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 1,500 lb680 kg
- Capacity on Platform Extension
- 300 lb136 kg
- Platform Height–Elevated
- 26 ft 2 in8 m
- Platform Height
- 26 ft 2 in8 m
Performance 13 specs
| Platform Capacity | 1,500 lb (680 kg) |
|---|---|
| Stowed Drive Speed | 3.5 mph (5.6 kph) |
| Capacity on Platform Extension | 300 lb (136 kg) |
| Number of Occupants | 4 |
| Lift / Lower Time | 37/37 seconds |
| Drive Speed–Lowered | 3.5 mph (5.6 km/h) |
| Drive Speed–Raised | 0.5 mph (0.8 km/h) |
| Gradeability | 40% |
| Max Tilt Rating – Side-to-Side | 2.5 Degrees |
| Max Tilt Rating – Fore and Aft | 3 Degrees |
| Turning Radius – Inside | 83 in (2 m) |
| Turning Radius – Outside | 175 in (4.44 m) |
| Platform Extension | 42 in (1.07 m) |
Dimensions 11 specs
| Platform Height | 26 ft 2 in (8 m) |
|---|---|
| Machine Width | 69.3 in (1.76 m) |
| Platform Height–Elevated | 26 ft 2 in (8 m) |
| Platform Height–Lowered | 4 ft 3 in (1.3 m) |
| Machine Length | 139 in (3.53 m) |
| Ground Clearance | 10.1 in (25.7 cm) |
| Wheelbase | 81.3 in (2.07 m) |
| Platform Railing Height | 44.7 in (1.14 m) |
| Machine Height | 96.7 in (2.46 m) |
| Platform Width | 63 in (1.6 m) |
| Platform Length | 130.5 in (3.3 m) |
Weight 1 spec
| Ground Bearing Pressure | 40 psi (2.81 kg/cm2) |
|---|
Power / Engine 1 spec
| Electric Drive | 8 x 6 V 225 Ah |
|---|
Hydraulics / Fluids 1 spec
| Hydraulic System – Capacity | 13.2 gal (50 L) |
|---|
