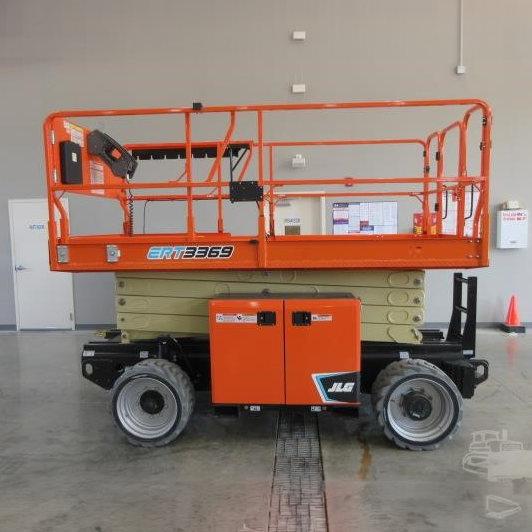

JLG ERT3369 Specs
Quick-reference specifications for the JLG ERT3369 scissor lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 1,000 lb453.59 kg
- Capacity on Platform Extension
- 300 lb136 kg
- Platform Height–Elevated
- 32 ft 8 in10 m
- Platform Height
- 32 ft 8 in10 m
Performance 12 specs
| Platform Capacity | 1,000 lb (453.59 kg) |
|---|---|
| Stowed Drive Speed | 3.5 mph (5.6 kph) |
| Capacity on Platform Extension | 300 lb (136 kg) |
| Lift / Lower Time | 44/40 seconds |
| Drive Speed–Lowered | 3.5 mph (5.6 km/h) |
| Drive Speed–Raised | 0.5 mph (0.8 km/h) |
| Gradeability | 35% |
| Max Tilt Rating – Side-to-Side | 2.5 Degrees |
| Max Tilt Rating – Fore and Aft | 3 Degrees |
| Turning Radius – Inside | 83 in (2 m) |
| Turning Radius – Outside | 175 in (4 m) |
| Platform Extension | 42 in (1.07 m) |
Dimensions 11 specs
| Platform Height | 32 ft 8 in (10 m) |
|---|---|
| Machine Width | 69.3 in (1.76 m) |
| Platform Height–Elevated | 32 ft 8 in (10 m) |
| Platform Height–Lowered | 4 ft 9 in (1.5 m) |
| Machine Length | 139 in (3.53 m) |
| Ground Clearance | 9.5 in (24 cm) |
| Wheelbase | 81.3 in (2.07 m) |
| Platform Railing Height | 44.7 in (1.14 m) |
| Machine Height | 8 ft 7 in (2.61 m) |
| Platform Width | 63 in (1.6 m) |
| Platform Length | 130.5 in (3.3 m) |
Hydraulics / Fluids 1 spec
| Hydraulic System – Capacity | 13.2 gal (50 L) |
|---|
