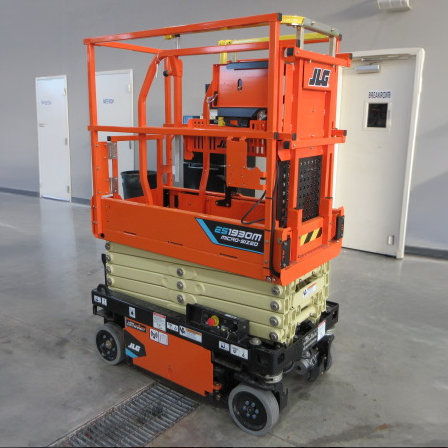

JLG ES1930M Specs
Quick-reference specifications for the JLG ES1930M scissor lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 500 lb227 kg
- Capacity on Platform Extension
- 254 lb115 kg
- Platform Height (Lowered)
- 34.2 in87 cm
- Weight
- 2,978 lb1,351 kg
Performance 11 specs
| Platform Capacity | 500 lb (227 kg) |
|---|---|
| Capacity on Platform Extension | 254 lb (115 kg) |
| Lift / Lower Time (No Load) | 22-27 Seconds |
| Lift / Lower Time (Rated Load) | 25-26 Seconds |
| Drive Speed (Lowered) | 3.0 mph (4.8 km/h) |
| Drive Speed (Raised) | 0.5 mph (0.8 km/h) |
| Max Gradeability | 24% |
| Max Tilt Rating (Side-to-Side) | 1.5 Degrees |
| Max Tilt Rating (Fore and Aft) | 3.0 Degrees |
| Drive | 24 V DC |
| Stowed Drive Speed | 3.0 mph (4.8 km/h) |
Dimensions 11 specs
| Max Platform Height | 18 ft 6 in (5.64 m) |
|---|---|
| Machine Width | 30 in (76 cm) |
| Machine Length | 58.2 in (1.48 m) |
| Wheelbase | 42.3 in (1.07 m) |
| Ground Clearance | 2.4 in (6 cm) |
| Platform Height (Lowered) | 34.2 in (87 cm) |
| Platform Railing Height | 43.8 in (1.10 m) |
| Machine Height (Rails Raised) | 78.1 in (1.98 m) |
| Platform Width | 27.6 in (70 cm) |
| Platform Length | 52.8 in (1.34 m) |
| Platform Extension | 21.6 in (55 cm) |
Weight 2 specs
| Weight | 2,978 lb (1,351 kg) |
|---|---|
| Max. Ground Bearing Pressure | 170 psi (11.95 kg/cm2) |
Power / Engine 3 specs
| Batteries | 2x 12 V 130 amp-hr |
|---|---|
| Charger | 650W Delta Q |
| Universal Charger | 110 V AC Receptacle in |
Hydraulics / Fluids 1 spec
| Hydraulic System – Capacity | 1.3 gal (5 L) |
|---|
