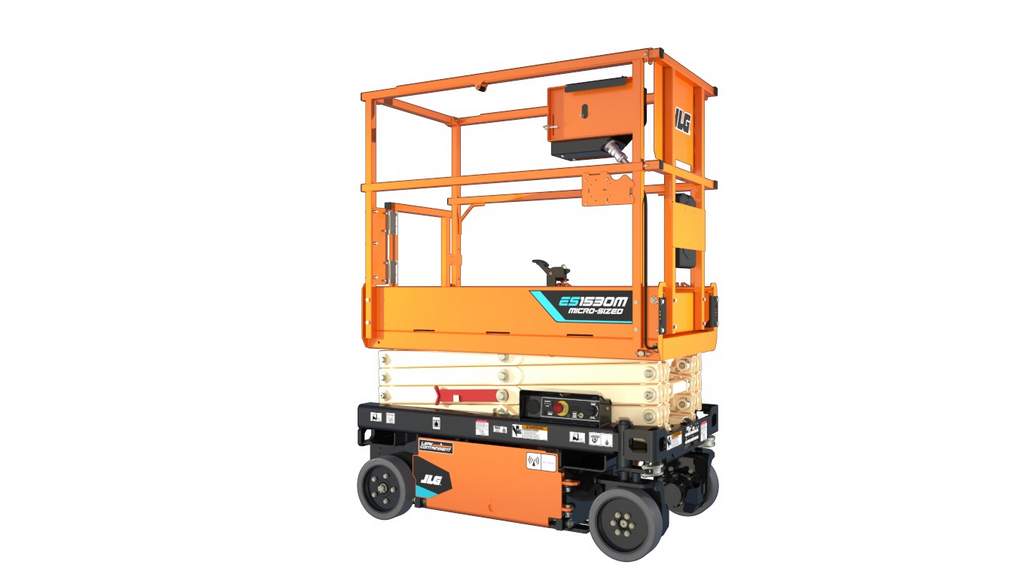

JLG ES1530M Spec Sheet
Quick-reference specifications for the JLG ES1530M. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform Capacity 500-lb /: 277-kg
Platform Height Indoor: 15-ft / 4.5-m
Capacity on Platform Extension 250-lb /: 115-kg
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Platform Height Indoor | 15-ft / 4.5-m |
|---|---|
| Platform Capacity 500-lb / | 277-kg |
| Platform Height (Elevated) 15-ft / | 4.5-m |
| Platform Capacity 500-lb / | 227-kg |
| Capacity on Platform Extension 250-lb / | 115-kg |
| Gradeability | 25% |
| Turning Radius (Outside) 55-in / | 1.4-m |
| A. Platform Height (Lowered) 31.1-in / | 0.8-m |
Dimensions
| B. Platform Railing Height 43.3-in / | 1.1-m |
|---|---|
| C. Machine Height 74.8-in / | 1.9-m |
| D. Platform Width | 24.4-in / .6-m |
| E. Platform Length 49.2-in / | 1.3-m |
| G. Machine Width 30-in / | 76-cm |
| H. Machine Length 56.2-in / | 1.4-m |
| I. Wheelbase 42.3-in / | 1.1-m |
| J. Ground Clearance 2.4-in / | 6-cm |
Weights & Electrical
| Batteries 2 x 12V | 105 amp-hr |
|---|---|
| Charger | 650W Delta Q |
Powertrain & Systems
| Stowed Drive Speed 2.4 mph / | 3.8 km/h |
|---|---|
| Drive Speed (Lowered) 2.4 mph / | 3.8 km/h |
| Drive Speed (Raised) 0.5 mph / | 0.8 km/h |
| Drive | 24V Electric |
Hydraulics & Capacities
| Max. Ground Bearing Pressure 126 psi / | 8.9kg/cm² |
|---|---|
| Capacity 1.3 gal / | 5 L |
