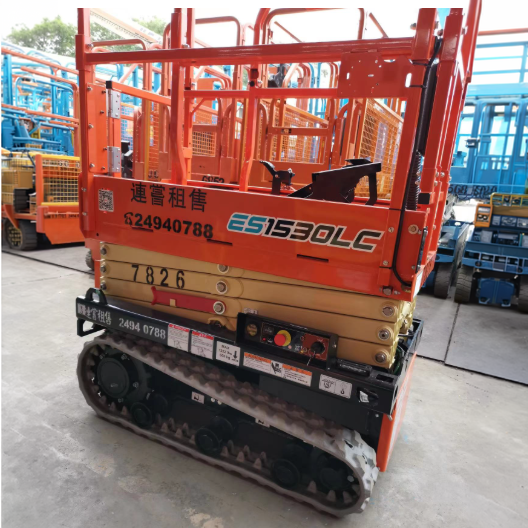

Electric Scissor Lift · JLG
JLG ES1530LC Specs
Quick-reference specifications for the JLG ES1530LC scissor lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 500 lb227 kg
- Capacity on Platform Extension
- 250 lb115 kg
- Platform Height (Lowered)
- 0.84 m
- Weight
- 1,940 lb880 kg
Performance 8 specs
| Number of Occupants | 1 |
|---|---|
| Platform Capacity | 500 lb (227 kg) |
| Capacity on Platform Extension | 250 lb (115 kg) |
| Lift / Lower Time | 19/19 seconds |
| Gradeability | 35% |
| Max Tilt Rating (Side-to-Side) | 2.0 Degrees |
| Max Tilt Rating (Fore and Aft) | 3.0 Degrees |
| Stowed Drive Speed | 1.86 mph (3.0 km/h) |
Dimensions 10 specs
| Maximum Drive Height | 33.1 in (0.84 m) |
|---|---|
| Machine Width | 78 cm |
| Machine Length | 1.43 m |
| Wheelbase | 0.985 m |
| Ground Clearance | 11 cm |
| Platform Height (Lowered) | 0.84 m |
| Platform Railing Height | 1.1 m |
| Machine Height | 1.95 m |
| Platform Width | 0.62 m x 1.25 m |
| Platform Extension | 55 cm |
Weight 2 specs
| Weight | 1,940 lb (880 kg) |
|---|---|
| Max. Ground Bearing Pressure | 6.8 psi (0.5 kg/cm²) |
Power / Engine 3 specs
| Batteries | 2 x 12 V 105 amp-hr |
|---|---|
| Drive | 24 V Electric |
| Battery Condition Indicator | 27 amp MultiFunction |
Hydraulics / Fluids 1 spec
| Hydraulic System – Capacity | 1.32 gal (5 L) |
|---|
