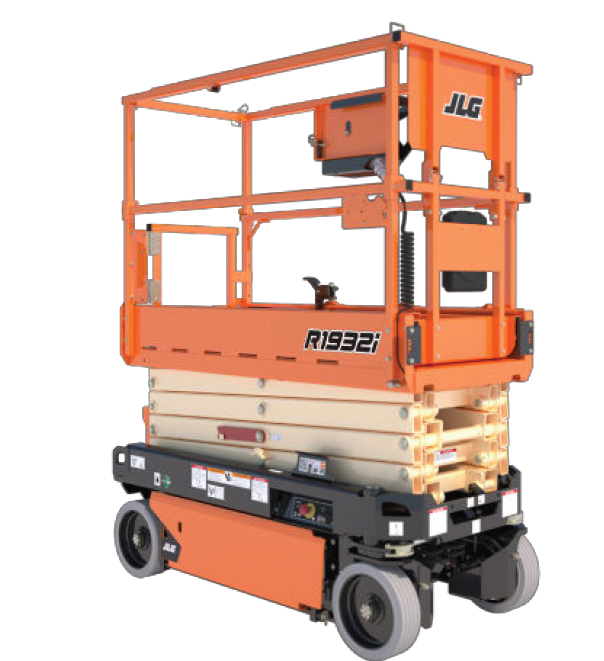

JLG R1932i Specs
Quick-reference specifications for the JLG R1932i scissor lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 507 lb230 kg
- Capacity on Platform Extension
- 265 lb120 kg
- Platform Height
- 19 ft5.8 m
- Gradeability
- 25%
Performance 11 specs
| Platform Capacity | 507 lb (230 kg) |
|---|---|
| Number of Occupants | 1 |
| Stowed Drive Speed | 2.1 mph (3.4 km/h) |
| Capacity on Platform Extension | 265 lb (120 kg) |
| Lift / Lower Time (No Load) | 20/27 seconds |
| Lift / Lower Time (Rated Load) | 25/26 seconds |
| Drive Speed (Lowered) | 2.1 mph (3.4 km/h) |
| Drive Speed (Raised) | 0.5 mph (0.8 km/h) |
| Gradeability | 25% |
| Max Tilt Rating (Side-to-Side) | 2.75 Degrees |
| Max Tilt Rating (Fore and Aft) | 2.75 Degrees |
Dimensions 12 specs
| Platform Height | 19 ft (5.8 m) |
|---|---|
| Machine Width | 32 in (81 cm) |
| Machine Length | 68.7 in (1.7 m) |
| Wheelbase | 53 in (1.3 m) |
| Ground Clearance | 2.8 in (7 cm) |
| Platform Height (Lowered) | 38.6 in (1.0 m) |
| Platform Railing Height | 43.3 in (1.10 m) |
| Machine Height (Rails Raised) | 82.8 in (2.1 m) |
| Machine Height (Rails Lowered) | 64.3 in (1.63 m) |
| Platform Width | 25.4 in (.64 m) |
| Platform Length | 62.7 in (1.59 m) |
| Platform Extension | 36 in (91 cm) |
Weight 1 spec
| Max. Ground Bearing Pressure | 103 psi (7.2 kg/cm²) |
|---|
Power / Engine 2 specs
| Batteries | 4 x 6 V 220 amp-hr |
|---|---|
| Charger | 27 Amp |
