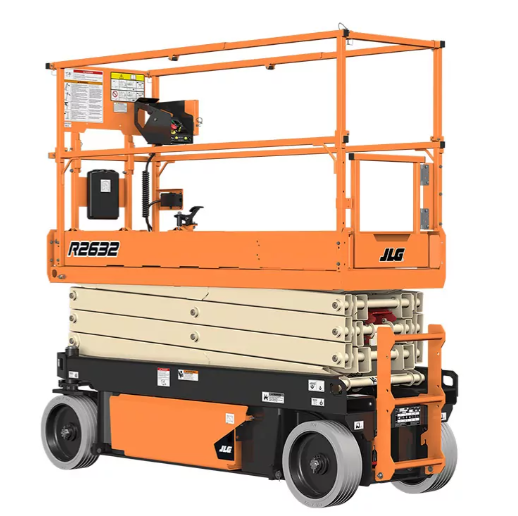

JLG R2632 Spec Sheet
Quick-reference specifications for the JLG R2632. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform Capacity Indoor: 507-lb / 230-kg
Platform Height Indoor: 25.5-ft / 7.8-m
Platform Capacity 507-lb /: 230-kg
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Platform Height Indoor | 25.5-ft / 7.8-m |
|---|---|
| Platform Capacity Indoor | 507-lb / 230-kg |
| Platform Height (Elevated) 25.5-ft / | 7.8-m |
| Platform Capacity 507-lb / | 230-kg |
| Capacity on Platform Extension 265-lb / | 120-kg |
| Gradeability | 25% |
| Turning Radius (Outside) 88.2-in / | 2.24-m |
| A. Platform Height (Lowered) 43.6-in / | 1.11-m |
Dimensions
| B. Platform Railing Height 44.6-in / | 1.13-m |
|---|---|
| C. Machine Height (Rails Raised) 88.2-in / | 2.24-m |
| D. Machine Height (Rails Lowered) 70.3-in / | 1.79-m |
| E. Platform Width | 25.4-in / .64-m |
| F. Platform Length 84.0-in / | 2.13-m |
| H. Machine Width 32-in / | 81-cm |
| I. Machine Length 94.3-in / | 2.4-m |
| J. Wheelbase 74-in / | 1.88-m |
| K. Ground Clearance 3.9-in / | 9.8-cm |
Weights & Electrical
| Batteries 4 x 6V | 220 amp-hr |
|---|---|
| Charger | 27 Amp |
Powertrain & Systems
| Stowed Drive Speed 2.2 mph / | 3.5 km/h |
|---|---|
| Drive Speed (Raised) 0.5 mph / | 0.8 km/h |
Hydraulics & Capacities
| Max. Ground Bearing Pressure 92 psi / | 6.2 kg/cm² |
|---|---|
| Capacity 4.8 gal / | 18 L |
