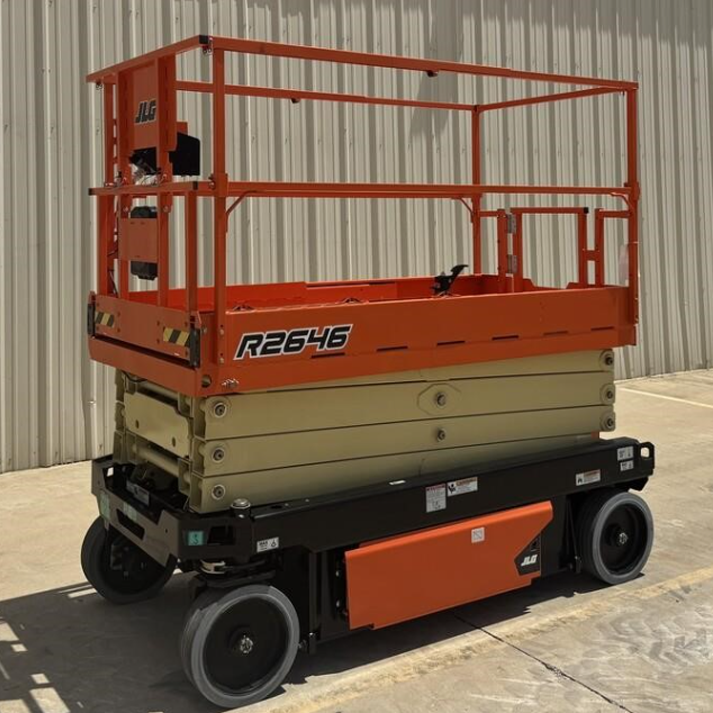

JLG R2646 Specs
Quick-reference specifications for the JLG R2646 scissor lift, compiled from published specifications.
- Platform Capacity
- 1,200 lb544 kg
- Platform Height
- 26 ft7.92 m
- Working Height
- 32 ft9.75 m
Performance 7 specs
| Platform Height | 26 ft (7.92 m) |
|---|---|
| Working Height | 32 ft (9.75 m) |
| Platform Capacity | 1,200 lb (544 kg) |
| Lift Time | 54 sec |
| Lower Time | 37 sec |
| Turning Radius – Inside | 0 in (0 m) |
| Turning Radius – Outside | 7 ft 4 in (2.24 m) |
Dimensions 11 specs
| Platform Height (Lowered) | 45 in (1.14 m) |
|---|---|
| Platform Railing Height | 44.6 in (1.1 m) |
| Machine Height (Rails Raised) | 89.6 in (2.28 m) |
| Machine Height (Rails Lowered) | 71.7 in (1.82 m) |
| Platform Width | 41.6 in (1.1 m) |
| Platform Length | 84 in (2.1 m) |
| Platform Extension | 36 in (91 cm) |
| Machine Width | 46 in (117 cm) |
| Machine Length | 94.3 in (2.4 m) |
| Wheelbase | 74 in (1.9 m) |
| Ground Clearance | 3.9 in (9.8 cm) |
