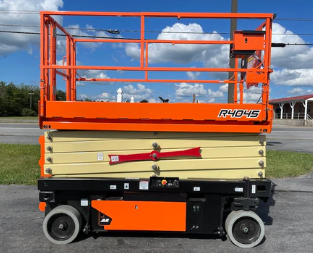

JLG R4045 Specs
Quick-reference specifications for the JLG R4045 scissor lift, compiled from published specifications.
- Platform Height – Elevated
- 39.3 ft11.96 m
- Working Height
- 45 ft 3 in13.96 m
- Gradeability
- 25%
Performance 9 specs
| Working Height | 45 ft 3 in (13.96 m) |
|---|---|
| Drive Speed – Platform Lowered | 2 mph (3.22 km/h) |
| Drive Speed – Platform Elevated | 0.5 mph (0.80 km/h) |
| Gradeability | 25% |
| Turning Radius | 8.4 ft (2.56 m) |
| Lift Time | 73 seconds |
| Lower Time | 48 seconds |
| Ground Clearance | 5 in (0.13 m) |
| Maximum Ground Bearing Pressure | 135 psi (9.45 kg/cm²) |
Dimensions 9 specs
| Machine Width | 3 ft 9 in (1.14 m) |
|---|---|
| Machine Length | 8 ft 10 in (2.71 m) |
| Transport Height – Rails Down | 1.9 m |
| Platform Height – Elevated | 39.3 ft (11.96 m) |
| Wheelbase | 6.8 ft (2.03 m) |
| Overall Height (Ground to Top of Rails) | 8 ft 4 in (2.549 m) |
| Platform Length | 1.05 m |
| Platform Width | 2.43 m |
| Platform Extension Length | 3 ft (0.91 m) |
Weight 1 spec
| Machine Weight | 7,000 lb (3,175 kg) |
|---|
Hydraulics / Fluids 5 specs
| Hydraulic System Fluid Capacity | 7.9 gal (29.90 L) |
|---|---|
| Main Relief Pressure | 3000 psi (207 bar) |
| Steer Relief Pressure | 1250 psi (86 bar) |
| Lift Relief Pressure | 2500 psi (172 bar) |
| Batteries | 4 x 12 V 150 amp-hour |
