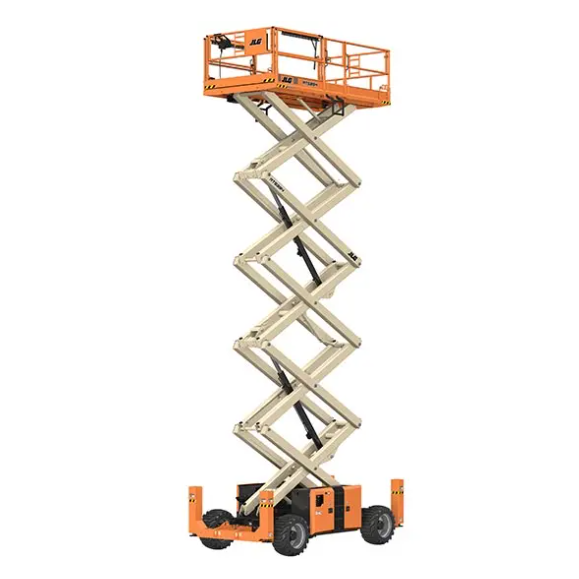

JLG RT5394 Specs
Quick-reference specifications for the JLG RT5394 scissor lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 1,500 lb680 kg
- Capacity on Platform Extension
- 500 lb227 kg
- Platform Height (Elevated)
- 53 ft16.2 m
- Platform Height
- 53 ft16.2 m
Performance 13 specs
| Platform Capacity | 1,500 lb (680 kg) |
|---|---|
| Stowed Drive Speed | 3.5 mph (5.6 km/h) |
| Capacity on Platform Extension | 500 lb (227 kg) |
| Number of Occupants | 6 |
| Lift / Lower Time | 65/60 seconds |
| Drive Speed (Lowered) | 3.5 mph (5.6 km/h) |
| Drive Speed (Elevated) | 5 mph (.8 km/h) |
| Gradeability | 40% |
| Max Tilt Rating (Side-to-Side) | 1.5 Degrees |
| Max Tilt Rating (Fore and Aft) | 1.5 Degrees |
| Turning Radius (Inside) | 9 ft (2.7 m) |
| Turning Radius (Outside) | 19 ft 9 in (6.0 m) |
| Platform Extension | 4 ft (1.2 m) |
Dimensions 12 specs
| Platform Height | 53 ft (16.2 m) |
|---|---|
| Machine Width | 7 ft 7 in (2.3 m) |
| Platform Height (Elevated) | 53 ft (16.2 m) |
| Maximum Drive Height | 32 ft (9.75 m) |
| Machine Length | 16 ft (4.9 m) |
| Ground Clearance | 12 in (30 cm) |
| Wheelbase | 9 ft 9 in (3.0 m) |
| Platform Height (Rails Lowered) | 7 ft 9 in (2.36 m) |
| Platform Railing Height | 43.5 in (1.1 m) |
| Machine Height | 10 ft 5 in (3.2 m) |
| Platform Width | 70.5 in (1.8 m) |
| Platform Length | 149.8 in (3.8 m) |
Weight 2 specs
| Weight w/One Extension | 17,110 lb (7,761 kg) |
|---|---|
| Ground Bearing Pressure | 90 psi (6.3 kg/cm²) |
Power / Engine 2 specs
| Dual Fuel – Kubota W6972 | 31 hp (23 kW) |
|---|---|
| Diesel Fuel – Kubota D1305 | 24.8 hp (18.5 kW) |
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 22 gal (83.3 L) |
|---|---|
| Hydraulic System – Capacity | 32 gal (121.4 L) |
