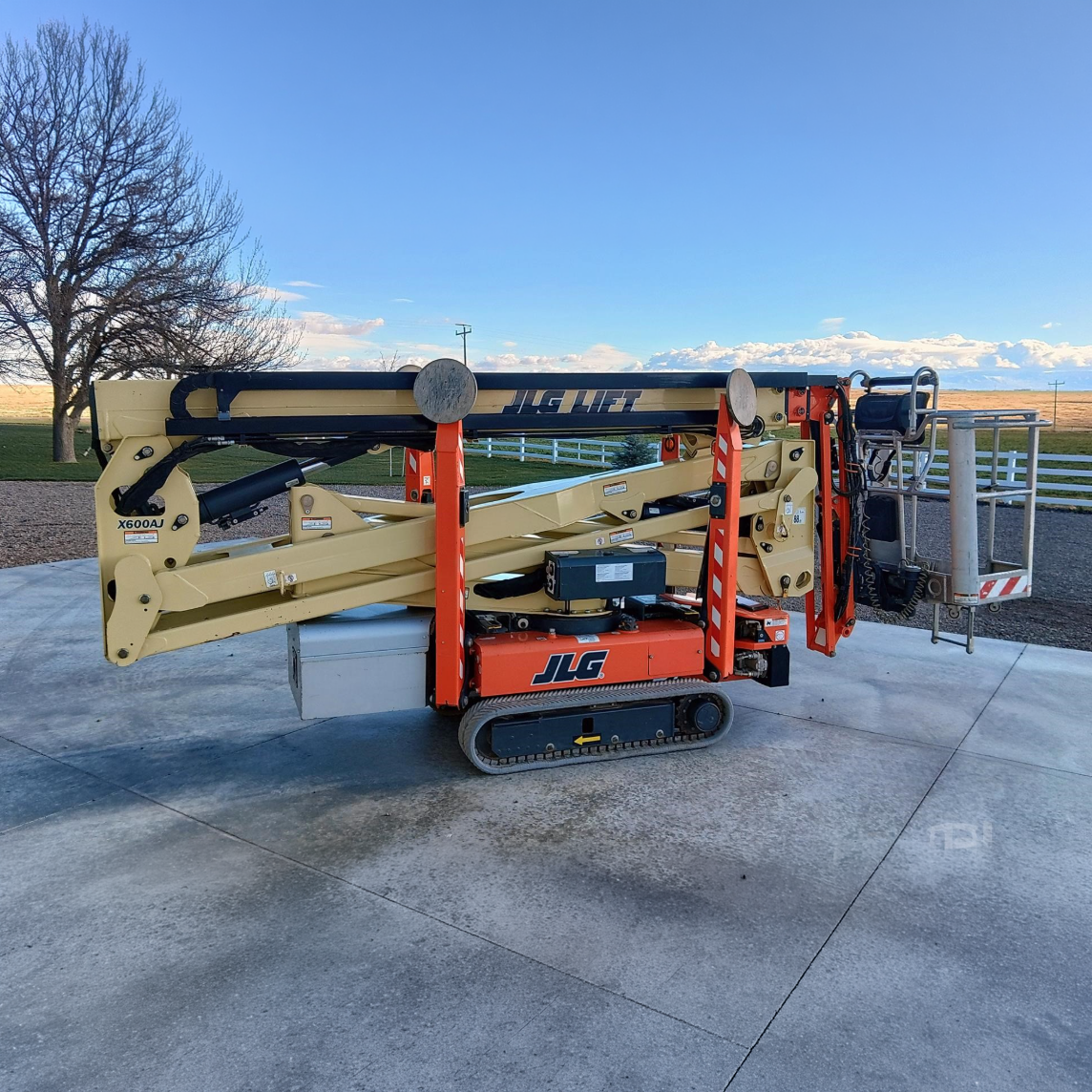

JLG X600AJ Specs
Quick-reference specifications for the JLG X600AJ boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 500 lb227 kg
- Platform Height
- 59 ft 3 in18.05 m
- Gradeability
- 28%
Performance 7 specs
| Horizontal Outreach | 30 ft (9.1 m) |
|---|---|
| Platform Capacity | 500 lb (227 kg) |
| Swing | 360 Degrees Non-continuous |
| Max Approach / Depart Angles | 18° / 19° |
| Drive Speed | 1.6 mph (2.5 km/h) |
| Gradeability | 28% |
| Platform, Single-Person | 31 x 31 in |
Dimensions 13 specs
| Platform Height | 59 ft 3 in (18.05 m) |
|---|---|
| Overall Width | 31 in (0.78 m) |
| Platform Width | 30.4 in (.77 m) |
| Platform Length | 55 in (1.4 m) |
| Machine Width with Platform | 55 in (1.4 m) |
| Machine Width Without Platform, Tracks Extended | 43.1 in (1.1 m) |
| Machine Height | 6 ft 6 in (1.98 m) |
| Machine Length | 16 ft 5 in (5.01 m) |
| Machine Length Without Platform | 14 ft 5 in (4.4 m) |
| Track length | 4 ft 10 in (1.47 m) |
| Outrigger Footprint – Length | 9 ft 7 in (2.9 m) |
| Outrigger Footprint – Width | 9 ft 7 in (2.9 m) |
| Outrigger Pad Diameter | 11.8 in (30 cm) |
Weight 5 specs
| Ground Bearing Pressure (Tracks) | 9.28 psi (.66 kg/cm2) |
|---|---|
| Ground Bearing Pressure (Outriggers) | 44.09 psi (3.09 kg/cm²) |
| Weight (Diesel) | 6,548 lb (2,970 kg) |
| Weight (Lithium) | 6,614 lb (3,000 kg) |
| Weight (Bi-Energy) | 6,834 lb (3,100 kg) |
Power / Engine 3 specs
| Diesel Engine: Kubota Z602 | 19.5 hp (14.5 kW) |
|---|---|
| Motor | 120 V AC / 60 HZ |
| Optional: Lithium Ion Battery | 64 V / 120 Ah |
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 4 gal (15.5 L) |
|---|---|
| Hydraulic System – Capacity | 10.56 gal (40 L) |
