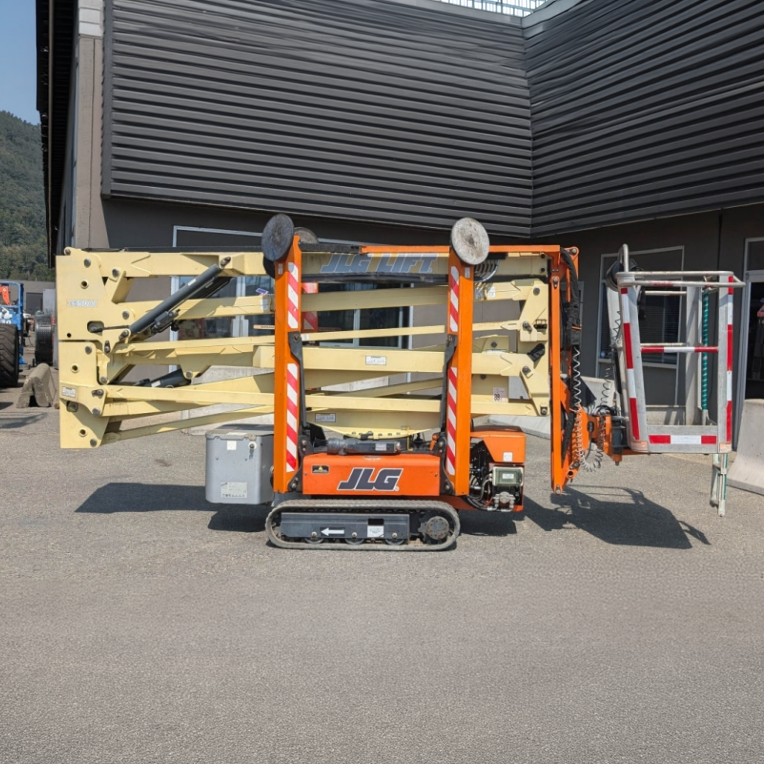

JLG X550AJ Specs
Quick-reference specifications for the JLG X550AJ boom lift, compiled from published specifications.
- Platform Capacity
- 440 lb200 kg
- Platform Height
- 55 ft16.76 m
- Operating Weight
- 4,630 lb2,098 kg
- Gradeability
- 38%
Performance 9 specs
| Platform Height | 55 ft (16.76 m) |
|---|---|
| Horizontal Outreach | 21 ft (6.40 m) |
| Platform Capacity | 440 lb (200 kg) |
| Swing | 360° Non-continuous |
| Platform Rotation | 124° (+/-62°) |
| Gradeability | 38% |
| Slope Tolerance | 11° |
| Drive Speed | 0.80 mph (1.3 km/h) |
| Ground Bearing Pressure | 27 psi (1.9 kg/cm²) |
Dimensions 6 specs
| Overall Length (Stowed) | 14 ft 8 in (4.47 m) |
|---|---|
| Overall Width | 31 in (0.77 m) |
| Overall Height (Stowed) | 6 ft 6 in (1.98 m) |
| Platform Size | 58 x 31 in (1.48 x 0.77 m) |
| Outrigger Footprint | 9 ft 6 in x 9 ft 5 in (2.8 x 2.8 m) |
| Track Length | 4 ft 1 in (1.24 m) |
Weight 1 spec
| Operating Weight | 4,630 lb (2,098 kg) |
|---|
Power / Engine 4 specs
| Engine Type (Gasoline) | Honda GX440 |
|---|---|
| Gasoline Engine Power | 15 hp |
| Engine Type (Electric) | 48 V Lithium-Ion (100 Ah) |
| Fuel Tank Capacity | 2 gal (5.68 L) |
