Forklift · Linde

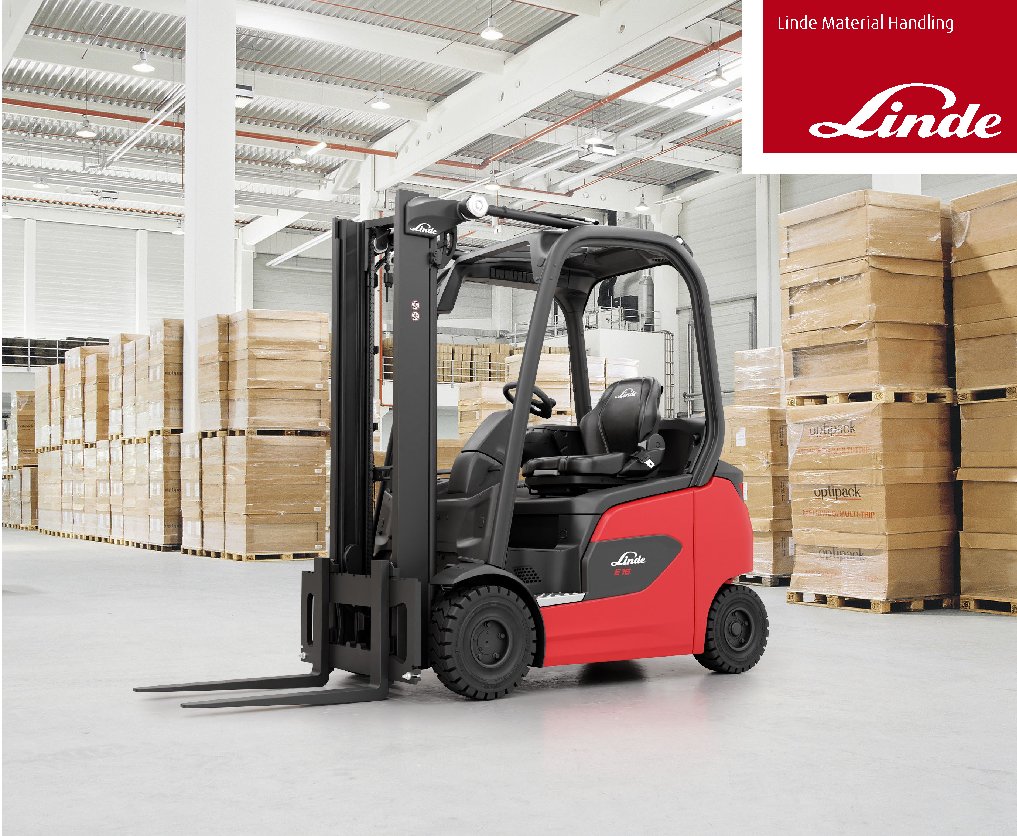

Linde E18PH Specs
Quick-reference specifications for the Linde E18PH forklift, from the manufacturer’s spec sheet and published specifications.
Performance 8 specs
| Fork carriage to ISO 2328, class/type A, B | 2A |
|---|---|
| Nominal Load Capacity | 3,968 lb (1.8 t) |
| Load Center (Center of Gravity) | 19.7 in (500 mm) |
| Lifting Height | 14.8 ft (4.5 m) |
| Travel Speed (with/without load) | 9.9 mph (16 km/h) |
| Hoisting Speed (with/without load) | 0.4 / 0.6 m/s (1.3 / 2.0 ft/s) |
| Lowering Speed (with load) | 0.58 m/s (1.9 ft/s) |
| Turning Radius | 5.28 ft (1.609 m) |
Dimensions 5 specs
| Total Width | 46.1 in (1,172 mm) |
|---|---|
| Construction Height | 83.1 in (2,130 mm) |
| Length to Fork Face | 82.0 in (2,083 mm) |
| Wheelbase | 58.3 in (1,481 mm) |
| Tilt (forward/back) | 5.0 / 7.0 degrees |
Weight 2 specs
| Weight (with minimum battery) | 2.267 t (4,998 lb) to 3.385 t (7,461 lb) |
|---|---|
| Battery Weight | 2,464 lb (1.118 t) |
Power / Engine 4 specs
| Battery according to DIN 43531/35/36 A, B, C, no | 43 531 A |
|---|---|
| Voltage | 48 V |
| Traction Motor | 12.3 hp (9.2 kW) |
| Hoist Motor | 13.4 hp (10 kW) |
