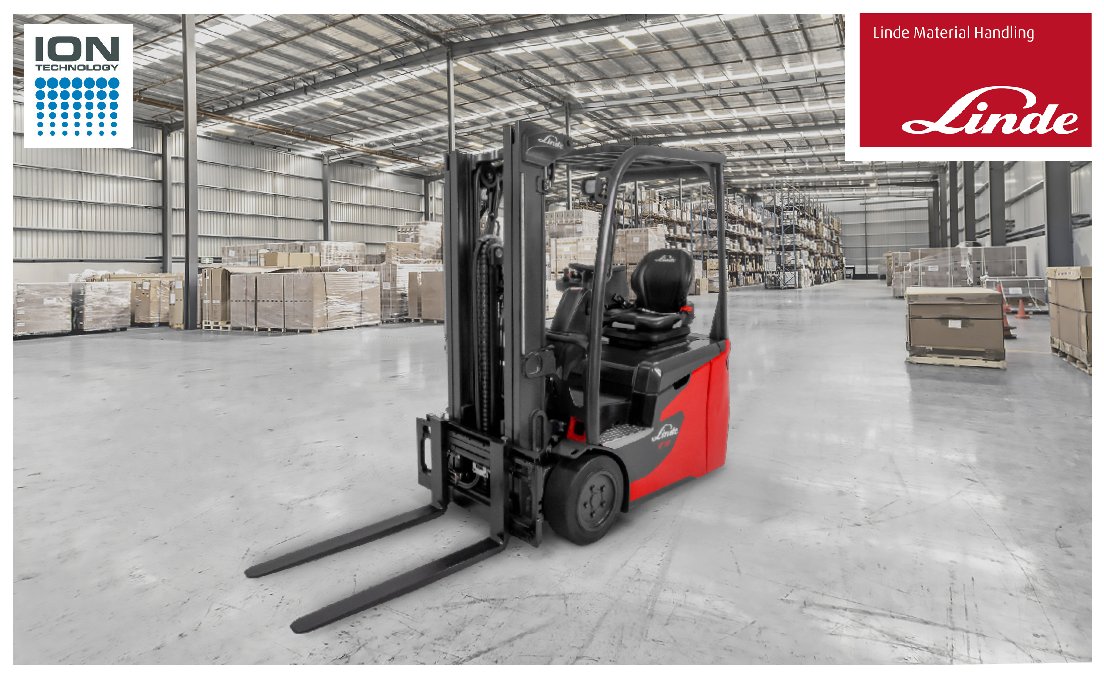

- Linde E20C
Forklift · Linde
Linde E20C Specs
Quick-reference specifications for the Linde E20C forklift, from the manufacturer’s spec sheet and published specifications.
Performance 12 specs
| V/Ah/kWh | 48 V / 736 Ah / 34kWh |
|---|---|
| Fork carriage, ITA Class/Type | 2A |
| Load Capacity | 4,000 lb (1,816 kg) |
| Load Center | 24 in (610 mm) |
| Travel Speed (Full load, 36V) | 8.7 mph |
| Travel Speed (Full load, 48V) | 10 mph |
| Lifting Speed (Full load, 36V) | 89 fpm |
| Lifting Speed (Full load, 48V) | 102 fpm |
| Lowering Speed (Full load) | 96 fpm |
| Turning Radius (outside) | 63.9 in (1,624 mm) |
| Aisle Width | 80 in (2,032 mm) |
| Maximum Tractive Force (5 min rating) | 2,450 lb |
Dimensions 18 specs
| Front overhang | x |
|---|---|
| Overall width | b1/b |
| Ground clearance, loaded, below mast | m1 |
| Ground clearance, center of wheelbase | m2 |
| Overall Length | 121.3 in (3,081 mm) |
| Length to Fork Face | 79.4 in (2,017 mm) |
| Mast Lowered Height (min-max) | 77.5-91.5 in (1,968-2,324 mm) |
| Overhead Guard Height | 80.5 in (2,045 mm) |
| Seat Height | 38.9 in (988 mm) |
| Tow Pin Height | 23 in (584 mm) |
| Wheelbase | 55.9 in (1,420 mm) |
| Track Width Front | 35 in (889 mm) |
| Track Width Rear | 6.8 in (173 mm) |
| Fork Carriage Width | 38.6 in (980 mm) |
| Fork Size | 1.5 x 4 x 42 in |
| Ground Clearance at Center of Wheelbase | 3.3 in (84 mm) |
| Mast/Fork Carriage Tilt | 6° forward / 5° back |
| Free Lift (top of forks, min-max) | 53-59.5 in (1,346-1,512 mm) |
Weight 5 specs
| Service Weight (with minimum battery) | 8,796 lb (3,991 kg) |
|---|---|
| Minimum Battery Weight | 2,155 lb (977.5 kg) |
| Maximum Battery Weight | 2,730 lb |
| Axle Loading (loaded, front/rear) | 10,495 lb / 1,361 lb |
| Axle Loading (unloaded, front/rear) | 4,411 lb / 3,945 lb |
Power / Engine 4 specs
| Voltage Options | 36 V / 48 V |
|---|---|
| Hoist Motor | 22 kW |
| Traction Motor | 18 kW |
| Motor Type | 100% AC traction and lift motors |
Hydraulics / Fluids 2 specs
| Tire Type Front | Cushion 18 x 7 x 12.13 in |
|---|---|
| Tire Type Rear | Cushion 15 x 5 x 11.25 in |
