Forklift · Linde

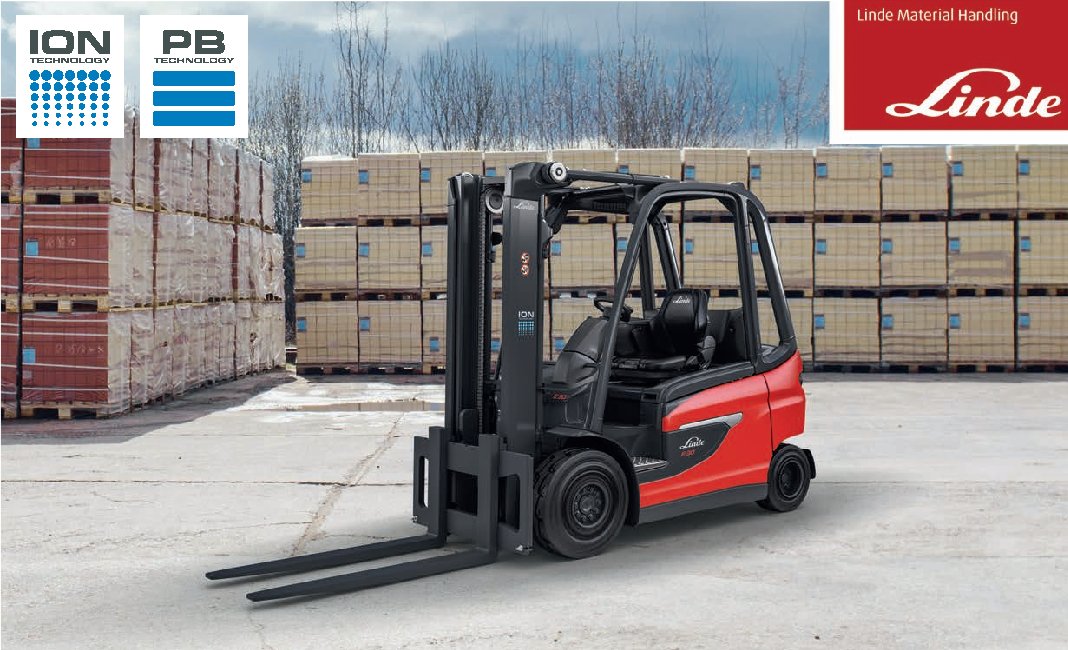

Linde E20 Specs
Quick-reference specifications for the Linde E20 forklift, from the manufacturer’s spec sheet and published specifications.
Performance 6 specs
| Fork carriage type | 2A |
|---|---|
| Load Capacity (Nominal load at COG) | 4,409 lb (2 t) |
| Travel Speed (with/without load) | 12.43 mph (20 km/h) |
| Lifting Speed (with/without load) | 0.48/0.61 m/s |
| Lowering Speed (with load) | 0.58/0.5 m/s |
| Turning Radius | 5.35 ft (1.629 m) |
Dimensions 5 specs
| Tyre size, rear | 200/50-10 |
|---|---|
| Total Width | 45.75 in (1,162 mm) |
| Construction Height (mast lowered) | 84.25 in (2,141 mm) |
| Lifting Height | 10 ft (3.05 m) |
| Load Center | 19.69 in (500 mm) |
Weight 2 specs
| Total Weight (without battery) | 5,769 lb (2.616 t) |
|---|---|
| Battery Weight | 1,887 lb (0.856 t) |
Power / Engine 3 specs
| Voltage | 80 V |
|---|---|
| Traction Motor | 22 kW |
| Hoist Motor | 17 kW |
Hydraulics / Fluids 2 specs
| Max Operating Pressure (auxiliary) | 2,465 psi |
|---|---|
| Max Flow Rate (auxiliary) | 8.5 gpm |
