Forklift · Linde

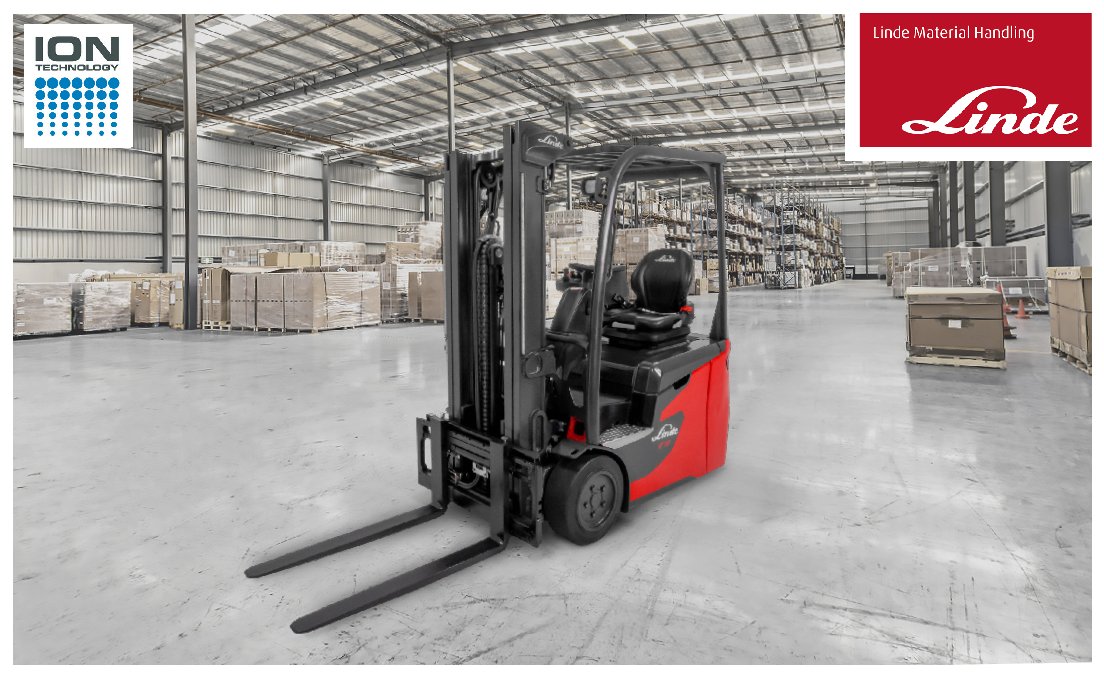

Linde E20P Specs
Quick-reference specifications for the Linde E20P forklift, from the manufacturer’s spec sheet and published specifications.
Performance 7 specs
| V/Ah/kWh | 48 V / 736 Ah / 34kWh |
|---|---|
| Fork carriage, ITA Class/Type | 2A |
| Load Capacity | 4,000 lb (1,814 kg) |
| Load Center | 24 in (610 mm) |
| Turning Radius (outside) | 70.4 in (1,788 mm) |
| Mast Tilt (forward/backward) | 6° / 5° |
| Right-Angle Stack (Aisle Width) | 86 in (2,184 mm) |
Dimensions 11 specs
| Front overhang | x |
|---|---|
| Overall width | b1/b |
| Ground clearance, loaded, below mast | m1 |
| Ground clearance, center of wheelbase | m2 |
| Overall Length to Fork Face | 85.9 in (2,182 mm) |
| Overall Width (standard tires) | 42 in (1,067 mm) |
| Height to Overhead Guard | 80.5 in (2,045 mm) |
| Mast Lowered Height | 77.5 in (Min) – 91.5 in (Max) |
| Fork Lift (max height) | 122 in |
| Wheelbase | 61 in (1,549 mm) |
| Tread Width (Front / Rear) | 35 in / 31 in |
Weight 2 specs
| Service Weight (without battery) | 8,827 lb (4,003 kg) |
|---|---|
| Weight Distribution – Full Load (Front/Rear) | 11,433 lb / 1,393 lb |
Power / Engine 1 spec
| Battery Voltage | 36 V or 48 V |
|---|
Hydraulics / Fluids 2 specs
| Auxiliary Hydraulic Max Pressure | 2,465 psi |
|---|---|
| Auxiliary Hydraulic Max Flow Rate | 8.5 gpm |
