Forklift · Linde

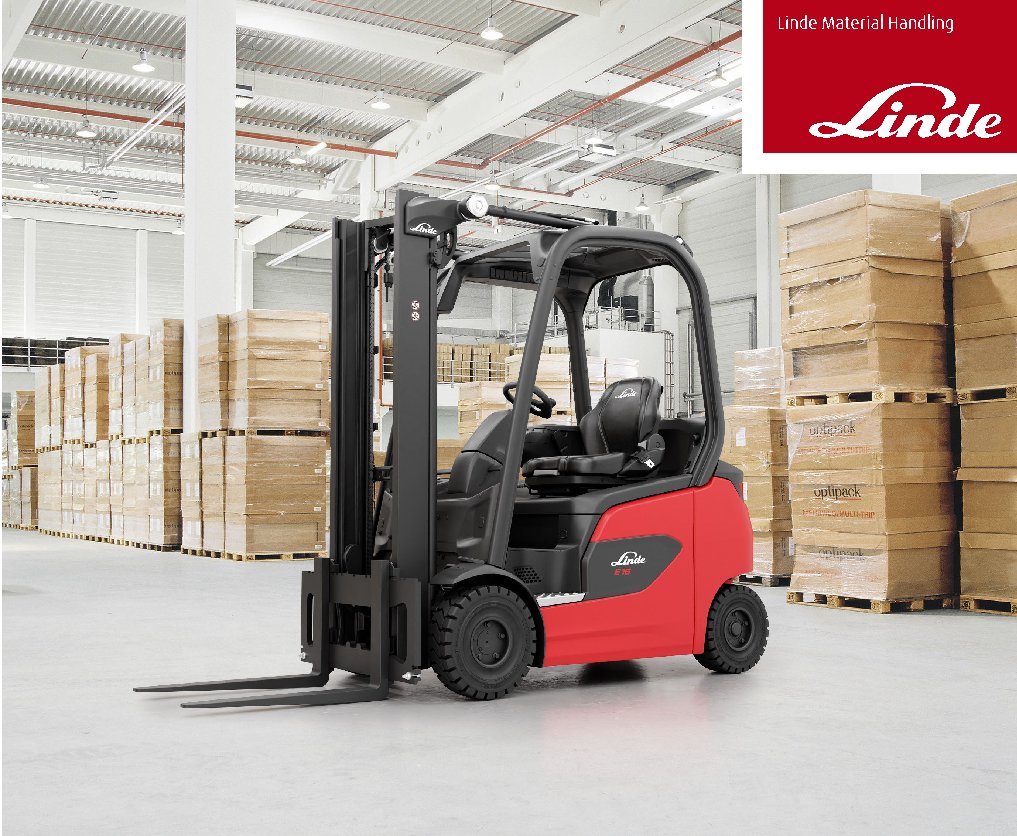

Linde E20PL Specs
Quick-reference specifications for the Linde E20PL forklift, from the manufacturer’s spec sheet and published specifications.
Performance 8 specs
| Fork carriage to ISO 2328, class/type A, B | 2A |
|---|---|
| Load Capacity | 4,409 lb (2.0 t) |
| Travel Speed (with/without load) | 20 / 20 km/h |
| Hoisting Speed (laden/unladen) | 0.5/0.6 m/s |
| Lowering Speed (laden) | 0.58 m/s |
| Turning Radius | 5.81 ft (1.771 m) |
| Lifting Height | 14.6 ft (4.45 m) |
| Free Lift | 5.9 in (150 mm) |
Dimensions 5 specs
| Total Width | 46.1 in (1172 mm) |
|---|---|
| Construction Height (Mast Lowered) | 77.6 in (1970 mm) |
| Load Centre Distance | 19.7 in (500 mm) |
| Aisle Width with 800x1200mm Pallet | 118.6 in (3610 mm) |
| Fork Carriage Width | 38.6 in (980 mm) |
Weight 2 specs
| Total Weight (with battery) | 7,462 lb (3.386 t) |
|---|---|
| Battery Weight | 2,226 lb (1.01 t) |
Power / Engine 4 specs
| Battery according to DIN 43531/35/36 A, B, C, no | 43 531 A |
|---|---|
| Battery Voltage | 48 V |
| Traction Motor | 10 kW |
| Hoist Motor | 11 kW |
