Forklift · Linde

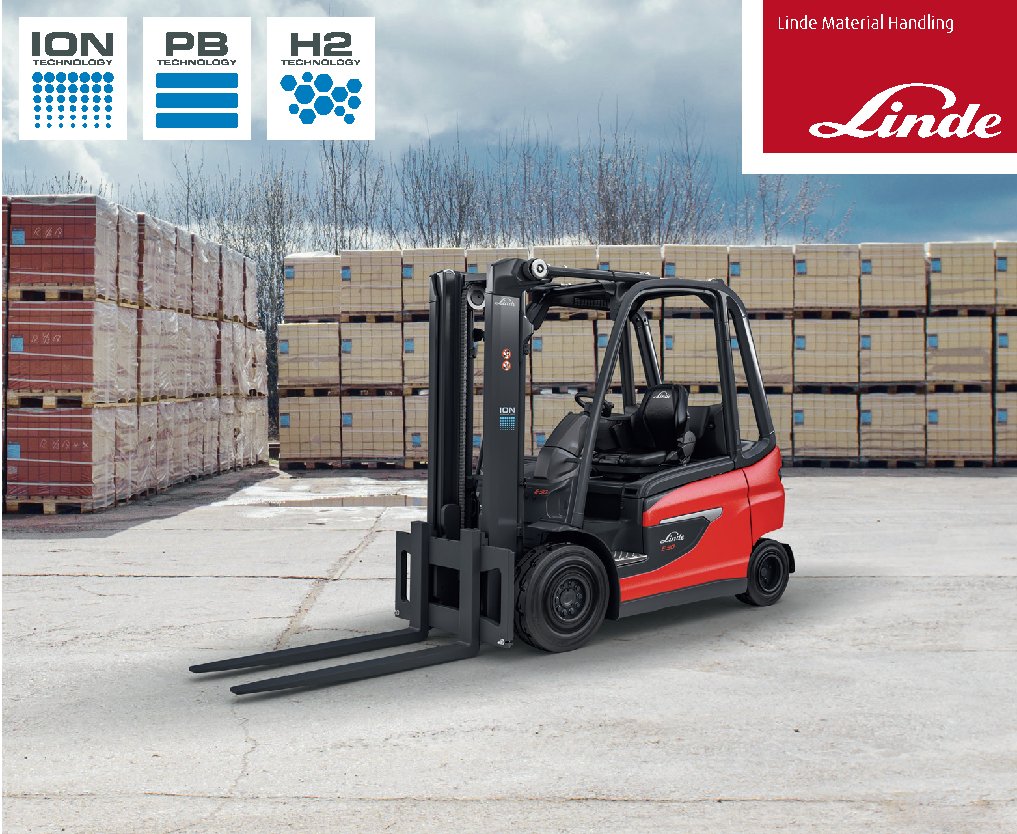

Linde E25-600HL Specs
Quick-reference specifications for the Linde E25-600HL forklift, from the manufacturer’s spec sheet and published specifications.
- Operating Weight
- 7,768 lb3,524 kg
Performance 7 specs
| Fork carriage to ISO 2328, class / type A, B | 2A |
|---|---|
| Load Capacity | 5,500 lb (2,500 kg) |
| Travel Speed (Full Load) | 20 km/h |
| Lifting Speed (Full Load) | 84.65 fpm (0.44 m/s) |
| Lowering Speed (Full Load) | 114.17 fpm (0.56 m/s) |
| Hoisting Speed (No Load) | 0.53 m/s |
| Turning Radius (Outside) | 81.85 in (2.052 m) |
Dimensions 11 specs
| Tyre size, rear | 200 / 50-10 |
|---|---|
| Overall Length | 139.17 in |
| Overall Width | 45.3 in (1,180 mm) |
| Length to Fork Face | 99.8 in |
| Mast Lowered Height | 91.42 in |
| Construction Height (Fully Lowered) | 88 in (2,237 mm) |
| Overhead Guard Height | 91.54 in |
| Wheelbase | 72.09 in |
| Basic Right-Angle Stack | 151.69 in |
| ForkSize(TxWxL) | 1.77 x 3.94 x 39.37 in |
| Lifting Height | 16.4 ft (5 m) |
Weight 2 specs
| Operating Weight | 7,768 lb (3,524 kg) |
|---|---|
| Battery Weight | 4,105 lb (1,863 kg) |
Power / Engine 3 specs
| Battery according to DIN 43531 / 35 / 36 A, B, C, no | 43 536 A |
|---|---|
| Battery Voltage | 80 V |
| Hoist Motor | 22 kW |
