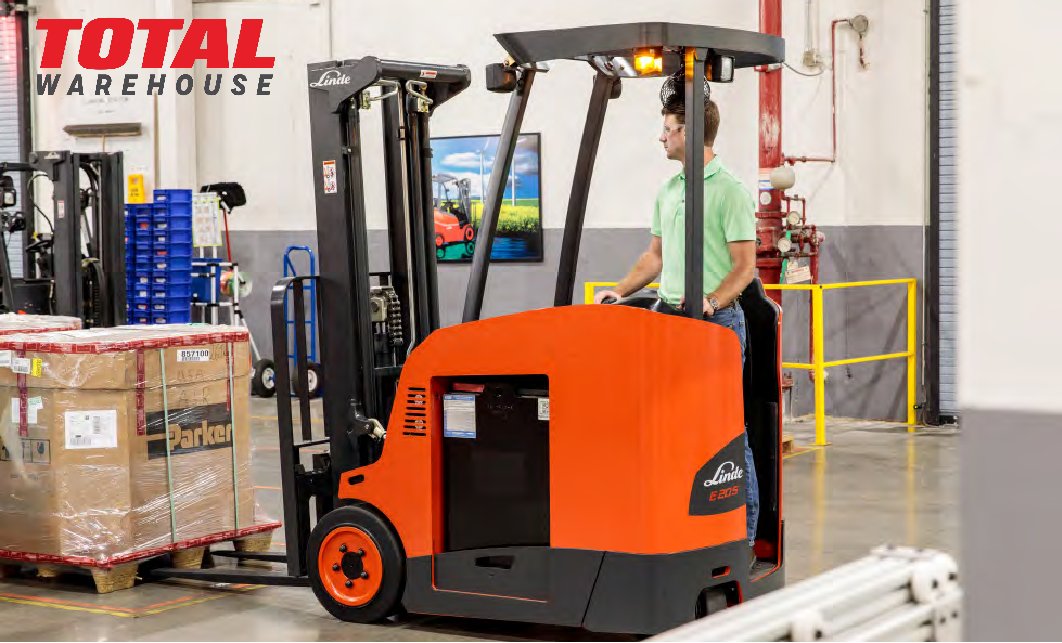

Linde E20S Specs
Quick-reference specifications for the Linde E20S forklift, from the manufacturer’s spec sheet and published specifications.
- Gradeability (Full Load)
- 17%
Performance 11 specs
| Axle center to fork face | x |
|---|---|
| Load Capacity | 4,000 lb (1,815 kg) |
| Travel Speed (Full Load) | 7.0 mph |
| Travel Speed (No Load) | 7.5 mph |
| Lifting Speed (Full Load) | 61 fpm |
| Lifting Speed (No Load) | 107 fpm |
| Lowering Speed (Full Load) | 95 fpm |
| Lowering Speed (No Load) | 85 fpm |
| Gradeability (Full Load) | 17% |
| Gradeability (No Load) | 20% |
| Load Center | 24 in (600 mm) |
Dimensions 3 specs
| Free-Lift (Top of Forks) | 63 in |
|---|---|
| Fork Size (Thickness × Width × Length) | 1.5 × 4 × 42 in (38 × 102 × 1,067 mm) |
| Right-Angle Stack | 70.2 in |
Weight 4 specs
| Total Weight (Without Battery) | 9,687 lb |
|---|---|
| Battery Weight | 2,834 lb (1,315 kg) |
| Weight Distribution Full Load (Front/Rear) | 12,188 lb / 1,400 lb |
| Weight Distribution No Load (Front/Rear) | 5,113 lb / 4,573 lb |
Power / Engine 3 specs
| Battery Voltage | 36 V |
|---|---|
| Traction Motors (Drive) | 4.1 × 2 kW |
| Sound Level (ANSI B56.11.5) | 68 dB (A) |
Hydraulics / Fluids 2 specs
| Auxiliary Hydraulic Function – Max Operating Pressure | 2,175 psi |
|---|---|
| Auxiliary Hydraulic Function – Max Flow Rate | 8.5 gpm |
