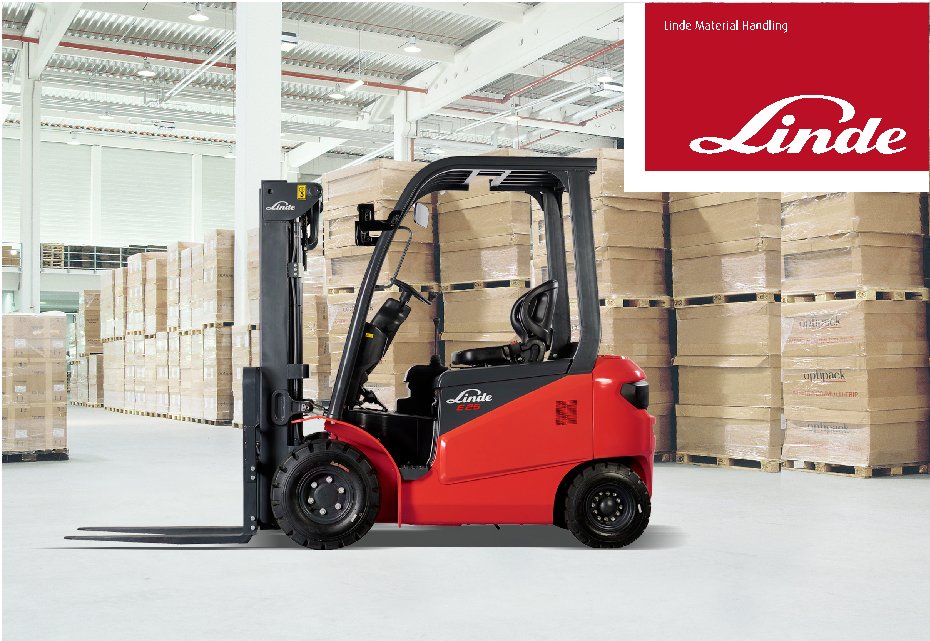

Linde E25 Specs

Quick-reference specifications for the Linde E25 forklift, taken from the manufacturer’s spec sheet.

Performance 4 specs

Load distance, centre of drive axle to fork	464
Tyres: solid rubber, superelastic, pneumatic, polyurethane	pneumatic
Service brake	Mechanical hydraulic
Sound pressure level at the driver’s seat	65

Wheelbase	1545
Tyre size, front	23X9-10
Tyre size, rear	18×7-8
Height of seat/stand-on platform	1166
Fork dimensions ISO 2331	45x100x1000
Fork carriage to ISO 2338, class/type A, B	2A
Ground clearance, centre of wheelbase	120

Battery according to DIN 43531/35/36 A, B, C, no	DIN 43536 A
Battery weight (E)	990
