Forklift · Linde

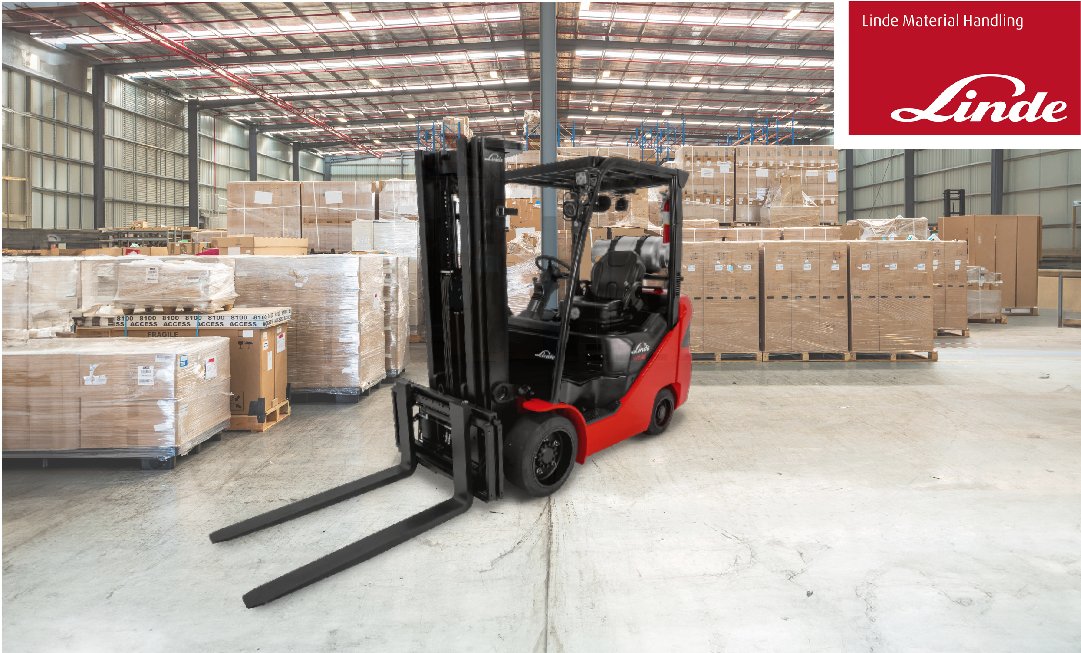

Linde HT30CT Specs
Quick-reference specifications for the Linde HT30CT forklift, from the manufacturer’s spec sheet and published specifications.
Performance 9 specs
| Load Capacity | 6,000 lb (2,722 kg) |
|---|---|
| Nominal Load at Center of Gravity | 6,000 lb (2.73 t) |
| Travel Speed with Load | 11.25 mph (18 km/h) |
| Travel Speed without Load | 11.25 mph (18 km/h) |
| Lifting Speed with Load | 110 fpm (0.56 m/s) |
| Lifting Speed without Load | 110 fpm (0.60 m/s) |
| Lowering Speed with Load | 94 fpm (0.48 m/s) |
| Maximum Climbing Ability | 25.3 % |
| Turning Radius (outside) | 84.1 in (2.14 m) |
Dimensions 10 specs
| Overall Length | 137.1 in |
|---|---|
| Overall Width | 43.7 in (1,110 mm) |
| Overhead Guard Height | 83.9 in |
| Length to Fork Face | 95.1 in |
| Fork Size | 1.75 x 5 x 48 in |
| Construction Height (mast lowered) | 2,130 mm |
| Wheelbase | 59.1 in |
| Load Center | 24 in (600 mm) |
| Tilt Range Forward | 6 degrees |
| Tilt Range Backward | 8 degrees |
Weight 3 specs
| Total Weight (without battery) | 10,097 lb (4.58 t) |
|---|---|
| Weight Distribution Front (full load) | 14,014 lb |
| Weight Distribution Rear (full load) | 2,094 lb |
Power / Engine 4 specs
| Engine Type | 2.5 L iVCT |
|---|---|
| Engine Power | 63 hp (47 kW) |
| Engine Displacement | 152.6 cu in (2.5 L) |
| Number of Cylinders | 4 |
Hydraulics / Fluids 2 specs
| Maximum Operating Pressure (auxiliary) | 2,600 psi |
|---|---|
| Maximum Flow Rate (auxiliary) | 18 gpm |
