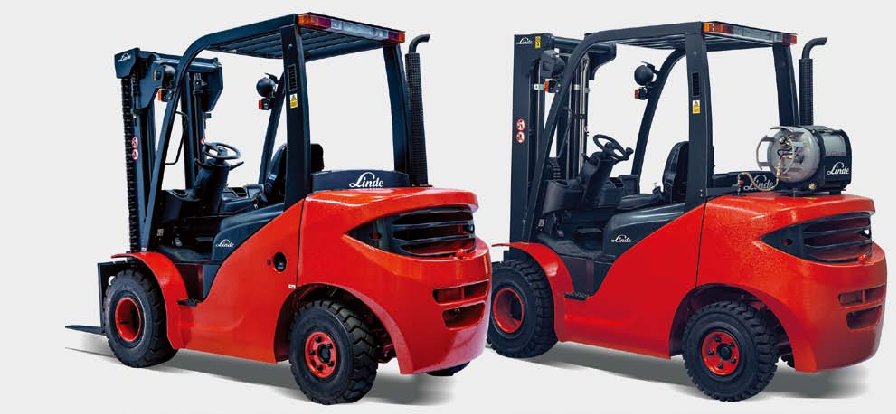

Linde HT25DS Specs
Quick-reference specifications for the Linde HT25DS forklift, taken from the manufacturer’s spec sheet.
Performance 11 specs
| Load capacity | 2.5 t |
|---|---|
| Load center | 500 mm |
| Mast tilt, forward/backward | 5°/9° |
| Turning radius | 2347 mm |
| Travel speed, with/without load | 19/20 km/h |
| Lifting speed, with/without load | 0.55/0.62 m/s |
| Lowering speed, with/without load | 0.50/0.40 m/s |
| Tractive force, with/without load | 14300/11000 N |
| Service brake | Mechanical/hydraulic |
| Rated speed | 2600 rpm |
| Type of drive control | Hydrodynamic transm. |
Dimensions 21 specs
| Axle centre to fork face | 501 mm |
|---|---|
| Wheelbase | 1700 mm |
| Tyre size, front | 27X10-12/14PR |
| Tyre size, rear | 6.50-10/14PR |
| Track width, front/rear | 1058/942 mm |
| Height of mast, lowered | 2235 mm |
| Free lift | 150 mm |
| Lift | 3050 mm |
| Height of mast, extended | 3825 mm |
| Height of overhead guard (cabin) | 2170 mm |
| Height of drive seat | 1100 mm |
| Tow coupling height | 600 mm |
| Length to fork face | 2725 mm |
| Overall width | 1306 mm |
| Fork dimensions, sxexl | 45x100x1000 mm |
| Fork carriage to DIN 15173 | 2A |
| Width of fork carriage | 1150 mm |
| Ground clearance with load, center of wheelbase | 170 mm |
| Aisle width, 1000x1200mm across forks | 4057 mm |
| Aisle width, 800x1200mm along forks | 4257 mm |
| Minimum pivoting point distance | 597 mm |
Weight 3 specs
| Service weight | 4120 kg |
|---|---|
| Axle load with load, front/rear | 5730/890 kg |
| Axle load without load, front/rear | 1760/2360 kg |
Power / Engine 3 specs
| Manufacture of engine/type | Kubota/V2607 |
|---|---|
| Engine performance according to ISO 14396 | 36.5 kw |
| Number of cylinders / displacement | 4/2615 cm3 |
Hydraulics / Fluids 1 spec
| Working pressure for attachments | 200 bar |
|---|
