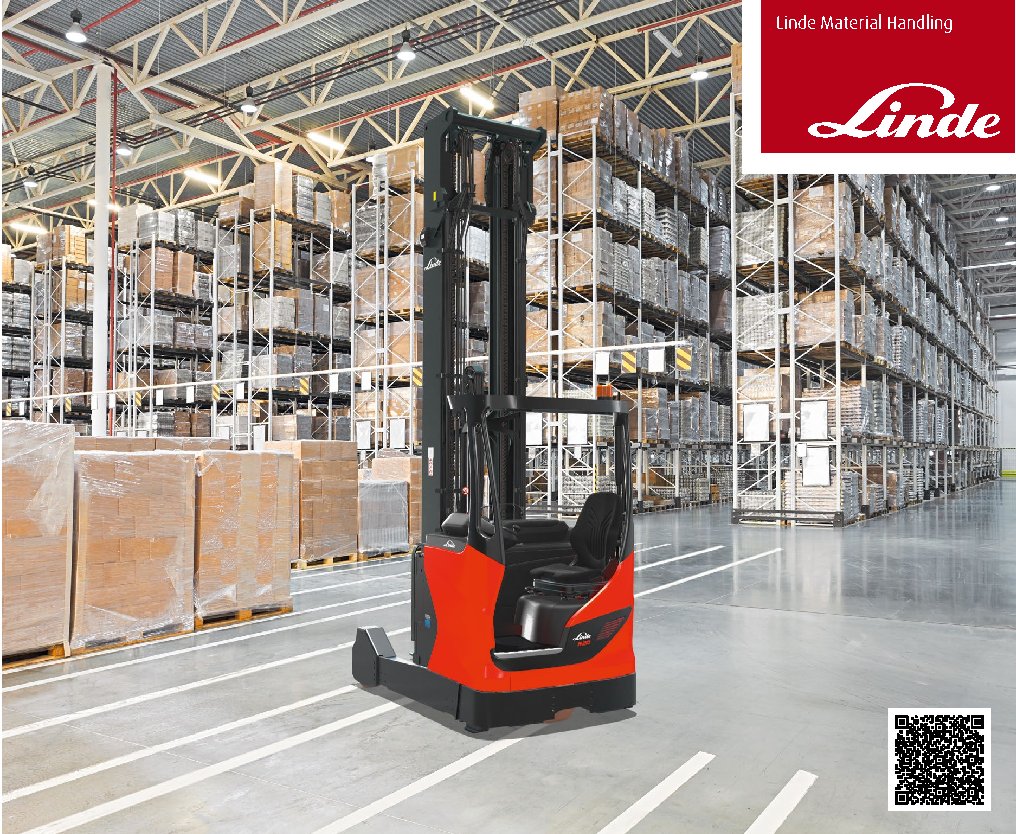

Linde R20HD Specs
Quick-reference specifications for the Linde R20HD forklift, from the manufacturer’s spec sheet and published specifications.
- Maximum Gradeability (full load)
- 10%
Performance 8 specs
| Fork carriage to ISO 2328 class/type A B | 2A |
|---|---|
| Load Capacity | 4,409 lb (2,000 kg) |
| Travel Speed (with/without load) | 10/10 km/h |
| Lifting Speed (with/without load) | 0.46/0.66 m/s |
| Lowering Speed (with load) | 0.55 m/s |
| Maximum Gradeability (full load) | 10% |
| Turning Radius | 75.39 in (1.915 m) |
| Noise Level (at driver’s seat) | 64 dB (A) |
Dimensions 10 specs
| Overall Length | 2,619 mm |
|---|---|
| Overall Width | 1,270 mm |
| Mast Height (lowered) | 4,930 mm |
| Mast Height (extended) | 12,201 mm |
| Overhead Guard Height | 2,110 mm |
| Wheelbase | 1,669 mm |
| Length to Fork Face | 1,469 mm |
| Free Lift | 3,800 mm |
| Load Center Distance | 600 mm |
| Fork Dimensions (DIN ISO 2331) | 45 x 100 x 1,150 mm |
Weight 2 specs
| Service Weight | 5,135 kg |
|---|---|
| Battery Weight | 1,306 kg |
Power / Engine 4 specs
| Battery according to DIN 43531/35/36 A B C no | 43 531 C/[Li-ION] |
|---|---|
| Battery Voltage | 48 V |
| Traction Motor | 6.5 kW |
| Hoist Motor | 14 kW |
Hydraulics / Fluids 2 specs
| Hydraulic Flow | 10 l/min |
|---|---|
| Maximum Pressure | 200 bar |
