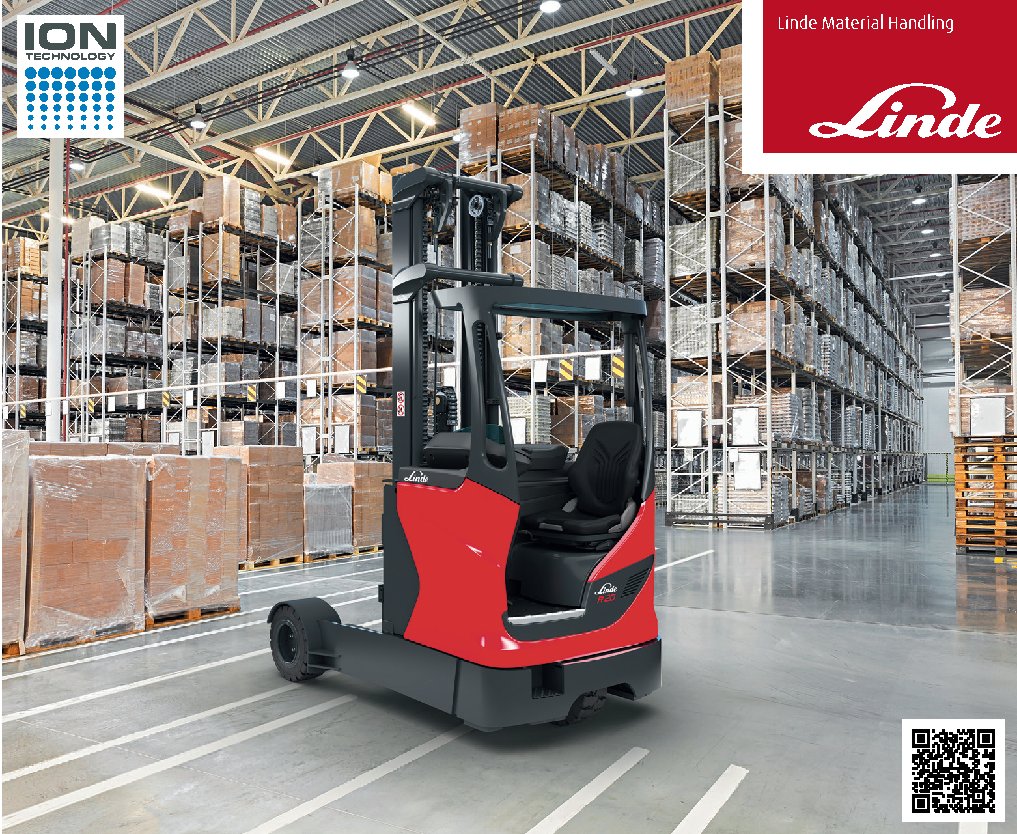

Linde R20 Specs

Quick-reference specifications for the Linde R20 forklift, taken from the manufacturer’s spec sheet.

Performance 10 specs

Load capacity / Load Q	2.0 t
Mast / fork carriage tilt, forward/backward a/b	2.0/4.0°
Height of reach legs h	473 mm
Reach travel l	779 mm
Turning radius Wa	1838 mm
Travel speed, with/without load	14 / 14 km/h
Lifting speed, with/without load	0.44 /0.58 m/s
Lowering speed, with/without load	0.6/0.6 m/s
Reach speed, with/without load	0.2 m/s
Service brake	hydr. /mech.

Load centre distance c	600/500 mm
Axle centre to fork face x	510 mm
Wheelbase y	1530 mm
Tyre size, rear	200/50 – 10
Track width, rear b	1250 mm
Height of mast, lowered h	3002 mm
Free lift h	2257 mm
Lift h	6960 mm
Height of mast, extended h	7701 mm
Height of overhead guard (cabin) h	2236 mm
Seat height relating to SIP/ stand height h	1036 – 1168 mm
Overall length l	2478 mm
Length to fork face l	1328 mm
Overall width b1 /b	1270/1458 mm
Fork dimensions DIN ISO 2331 s /e/ l	45 × 100 × 1150 mm
Fork carriage to ISO 2328, class / type A, B	2B
Width of fork carriage b	790 mm
Fork spread b	296/829 mm
Distance between wheel arms / loading surfaces b	920 mm
Ground clearance, below mast m	168 mm
Ground clearance, centre of wheelbase m	132 mm
Aisle width for pallets 1000 × 1200 crossways Ast	2813 mm
Aisle width with pallet 800 × 1200 along forks Ast	2836 mm
Length of chassis l	2070 mm

Service weight	3650 kg
Axle load with load, front / rear	2390/1260 kg
Axle load without load, front / rear	560/5090 kg
Axle load, fork retracted, with load, front / rear	2272/3378 kg

Drive motor rating S2 60 min	6.5 kW
Lift motor rating at S3 15 %	14 kW
Battery according to DIN 43531 / 35 / 36 A, B, C, no	43 531 C / [Li-ION]
Battery energy content	[39.2] kWh
Battery weight (± 5 %)	939 kg
Power consumption according to VDI cycle	5.3 kWh/h
